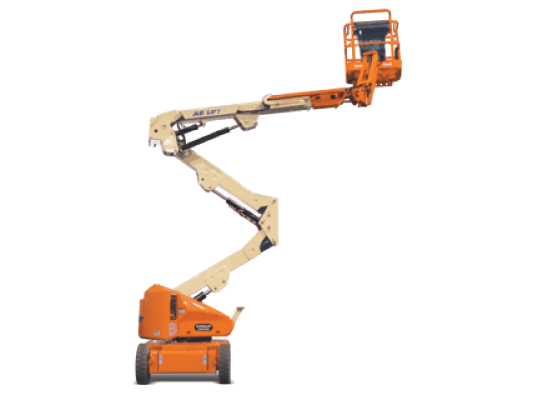

E400AJPN

The E400 Series is environmentally friendly with industry-leading performance. You get the up and over access you need and multiple function operation for efficient maneuvering in tight spaces. The hybrid power option gives you round-the-clock operation and faster battery charging with the diesel-powered QuikCharge GenSet Automatic Charging System, which can be turned off for emission- and noise-free operation indoors.

Features

  • Maneuverability move over uneven surfaces with the Automatic Traction Control option
  • Productivity work longer with longer duty cycles
  • Versatility Three platform heights and jib and non-jib options; three chassis widths to fit any workspace; electric or multi-fuel
  • Environmentally friendly zero emissions
  • Accessibility up and over access, optional jib
Specifications

  • Batteries: 8 x 6V, 370 amp-hr
  • Capacity - Hydraulic Reservoir: 4 gal. / 15.14 L
  • Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
  • Electrical System: 48 Volts DC
  • Gradeability - 2WD: 30 %
  • Ground Clearance: 5 in. / 0.13 m
  • Horizontal Jib Rotation: 180 Degrees
  • Horizontal Outreach: 22 ft 5 in. / 6.83 m
  • Machine Height: 6 ft 6 in. / 1.97 m
  • Machine Length: 22 ft / 6.71 m
  • Machine Weight: 14900 lb / 6758.53 kg
  • Machine Width: 4 ft 11 in. / 1.5 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Capacity - Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 4 ft / 1.22 m
  • Platform Height: 40 ft / 12.19 m
  • Platform Height: 40 ft / 12.19 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 4 in. / 0.1 m
  • Tire Size: 22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R)
  • Turning Radius - Outside: 10 ft 4 in. / 3.15 m
  • Up and Over Height: 21 ft 6 in. / 6.55 m
  • Vertical Jib Rotation: 144 Degrees
  • Wheelbase: 6 ft 7 in. / 2.01 m
