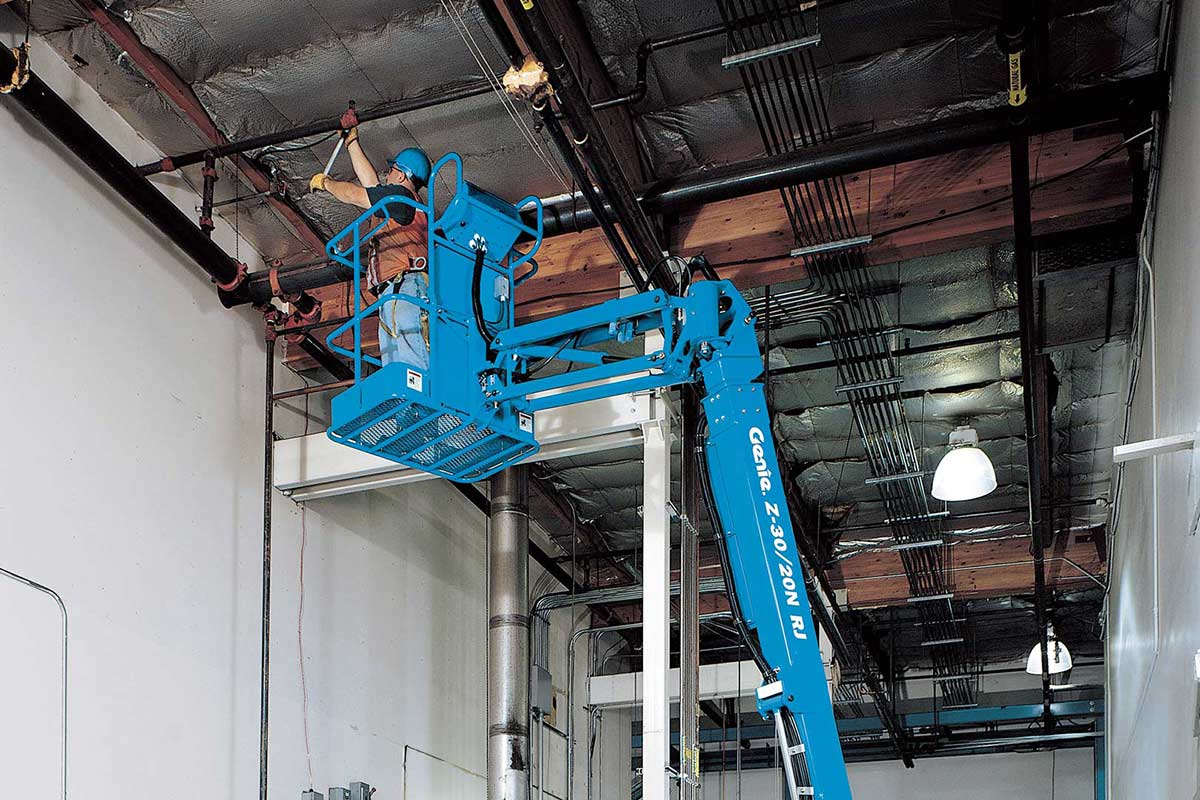

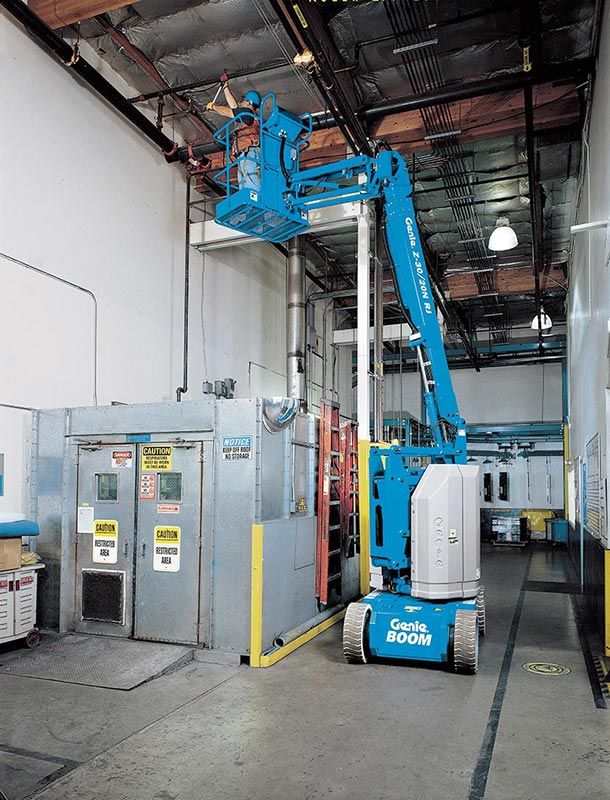

Features
  • Standard self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • Automatic hill and ramp braking
  • Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
  • 47 in (1.19 m) wide chassis for narrow aisle access
  • 4 ft (1.22 m) jib boom has 139° range of motion allowing positioning above or below horizontal
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability
  • Z-30/20 N RJ optional rotating jib offers 200° of horizontal rotation
  • Drive performance of 35% gradeability and 3.3 mph travel speed
  • Horizontal Reach: 21 ft 5 in (6.53 m)
  • Horizontal Reach: 21 ft 5 in (6.53 m)
  • Lift Capacity: 500 lbs (227 kg)
  • Up & Over Clearance: 12 ft 8 in (3.86 m)
  • Up & Over Clearance: 12 ft 8 in (3.86 m)
  • Width: 3 ft 11 in (1.19 m)
  • Working Height*: 36 ft (11.14 m)
  • Working Height*: 36 ft (11.14 m)

Documentation

Download at http://www.riekesequipment.com/new-equipment/aerial-lifts/articulating-booms/Z™-30/20 N

Booms Family Brochure 2015
Z-30/20 N Range of Motion Chart
Boom Options Brochure
Z-30/20 N Product Specifications
