Z-45/25J DC

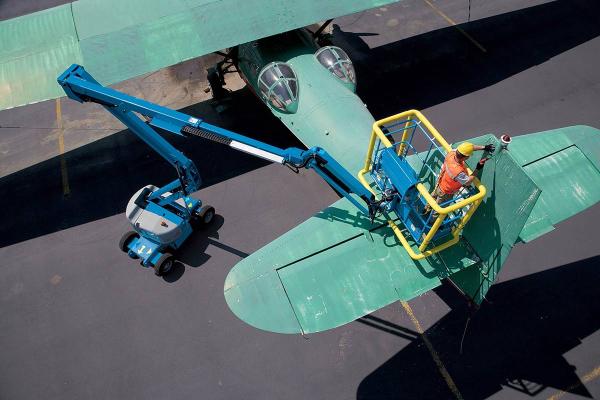

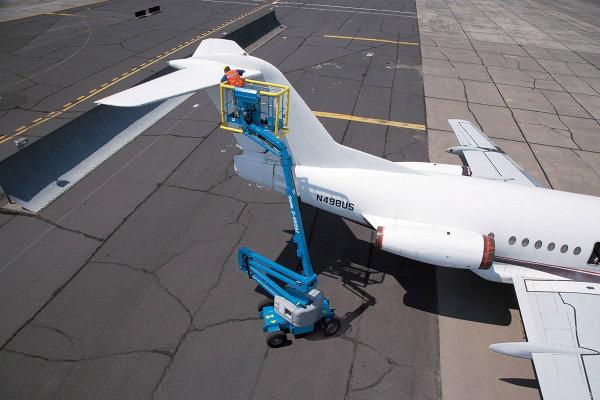

The Genie® Z®-45/25J DC electric and bi-energy articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments. They’re 48V DC machines with a diesel-powered generator acting as a 100-amp battery charger, making these articulating boom lifts ideal for indoor and outdoor applications.

Overview

  • 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
  • Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
  • Self-leveling platform features a 160° hydraulic rotation for Genie Z-45/25 J models
  • Self-leveling platform features 180° powered rotation for precise positioning and easy operation

Specifications

  • Max Horizontal Reach: 25 ft 1 in | 7.69 m
  • Max Working Height: 51 ft 9 in | 15.94 m
  • Max Up and Over Clearance (riser extended): 23 ft 9 in | 7.24 m
  • Platform Capacity: 500 lb | 227 kg


Chassis Options

  • Tow package

Tire Options

  • Industrial non-marking foam-filled tires (water based)

Engine Options (Bi-Energy models only)

  • 13 hp Kubota Z482 Tier 4f, diesel driven alternator
  • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
  • Diesel catalytic scrubber muffler

Lift/Turntable Options

  • AGM maintenance-free batteries
  • Battery charge indicator (BCI): standard on Bi-Energy model
  • Specialty hydraulic oil  (11 gal – cold weather, fire resistant, or biodegradable)
  • Low voltage interrupt with BCI
  • Low voltage interrupt with BCI: Bi-Energy only
  • Power inverter, 800W, 120V AC, 60 Hz: DC models only
  • Hostile environment kit – cylinder bellows, boom wiper seals, lockable platform control box cover
  • EE rating, DC only

Platforms

  • 4 ft. steel platform
  • 6 ft. dual entry platform with ½ height mesh inserts and side swing gate

Platform Options

  • Air line to platform:  ? in. inner diameter
  • Aircraft protection kit:  platform foam padding and padded disable system
  • Aircraft protection kit with swing gate
  • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
  • Lockable platform control box cover
  • Panel cradle package
  • Platform auxiliary top rail, 6′ platform
  • Traveling fall arrest anchor system: requires 6ft platform
