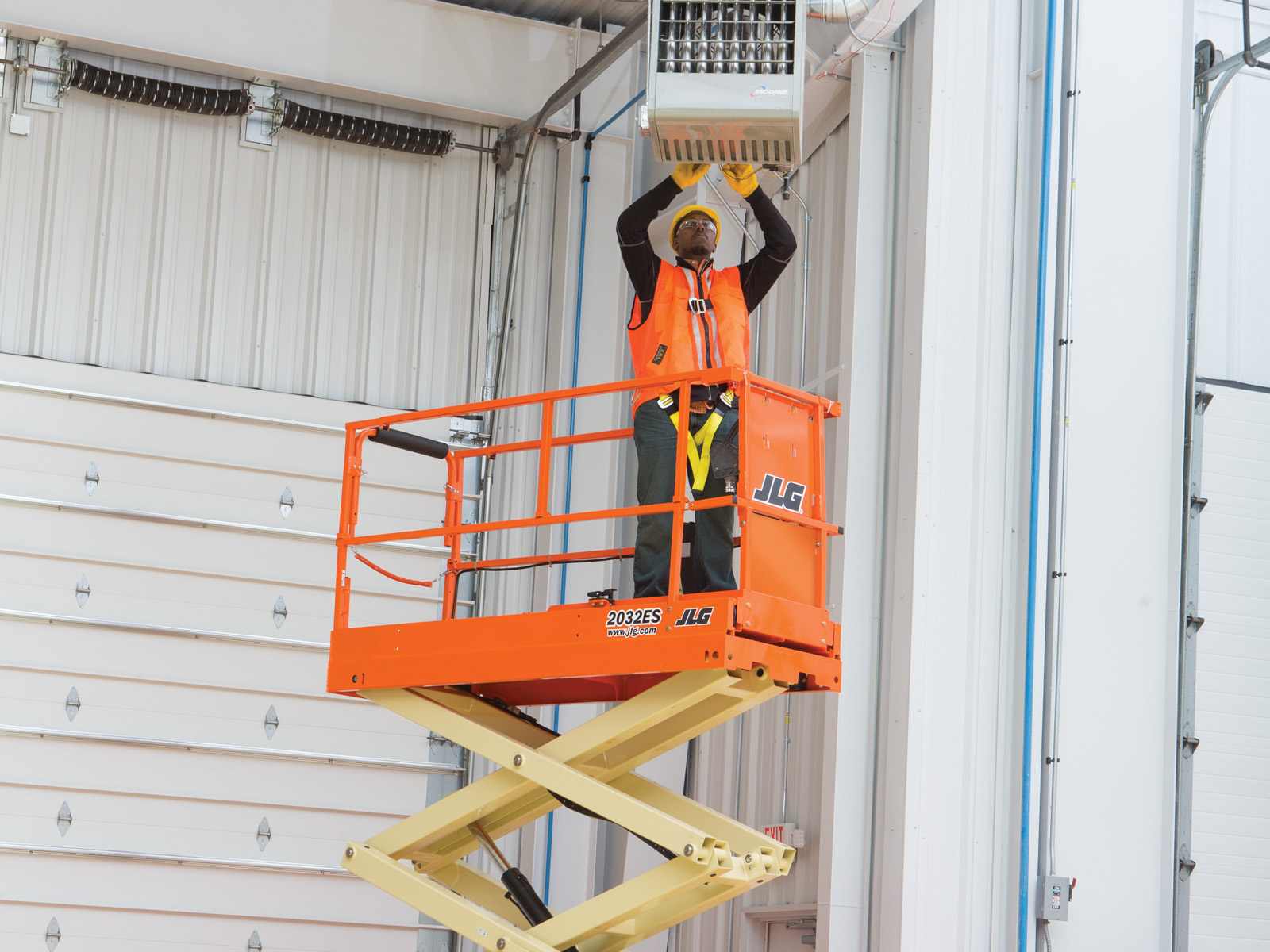

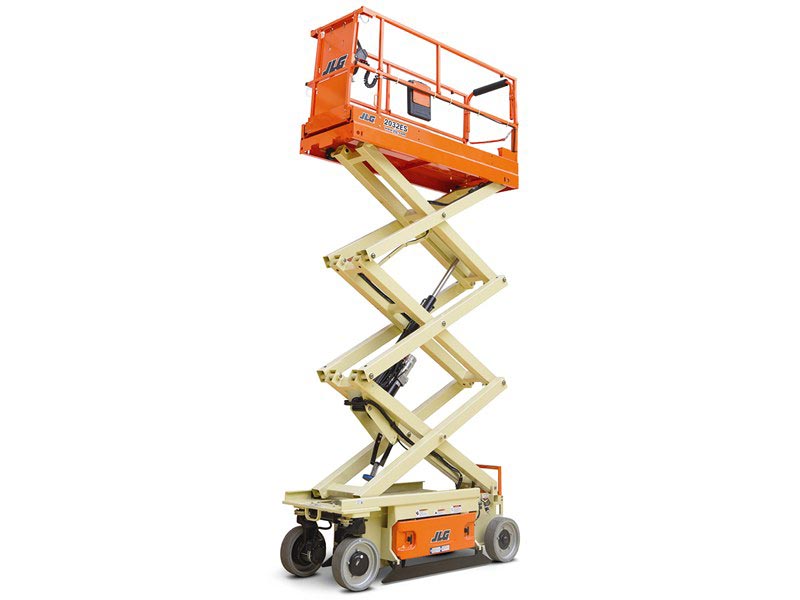

2032ES

Key Specs

  • Platform Height: 20 ft / 6.1 m
  • Machine Width: 2 ft 8 in. / 0.81 m

Key Features

  • Quieter, cleaner operation for a variety of environments
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Narrow width fits through most standard doorways and tight aisles
  • Delivers 200% more battery life*
    *Compared to a competitive model under similar test conditions. Actual results may vary.

Features

  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Quieter, cleaner operation for a variety of environments
  • Narrow width fits through most standard doorways and tight aisles
  • Delivers 200% more battery life*  *Compared to a competitive model under similar test conditions. Actual results may vary.
Specifications

  • Platform Capacity - Unrestricted: 800 lb / 362.87 kg
  • Capacity - Hydraulic Reservoir: 1.3 gal. / 4.73 L
  • Platform Railing Height: 3 ft 7 in. / 1.1 m
  • Machine Height: 7 ft 3 in. / 2.2 m
  • Turning Radius - Inside: 0 in. / 0 m
  • Working Height: 26 ft / 7.92 m
  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Machine Height - Rails Folded: 6 ft / 1.82 m
  • Ground Clearance: 4 in. / 0.09 m
  • Hydraulic Pump: Fixed Displacement Gear
  • Drive Speed - Platform Lowered: 2.8 mph / 4.43 km/h
  • Lower Time: 40 sec.
  • Batteries: 4 x 6V, 220 amp-hour
  • Platform Extension Length: 3 ft / 0.9 m
  • Wheelbase: 6 ft 2 in. / 1.88 m
  • Machine Weight: 3610 lb / 1637.47 kg
  • Gradeability: 25 %
  • Machine Width: 2 ft 8 in. / 0.81 m
  • Drive System: 24V Electric
  • Maximum Drive Height: 20 ft / 6.1 m
  • Lift Time: 28 sec.
  • Platform Capacity - Extension: 250 lb / 113.40 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Turning Radius - Outside: 6 ft 9 in. / 2.06 m
  • Charger: 20 amp automatic
  • Maximum Ground Bearing Pressure: 81 psi / 5.67 Kg/cm2
  • Platform Dimension B: 7 ft 7 in. / 2.3 m
  • Brakes: Electric, Friction
  • Tire Size: 16 X 5 in
  • Platform Height - Lowered: 3 ft 8 in. / 1.1 m
Documentation
Request a Quote

Request a Quote

Do you have a trade in?

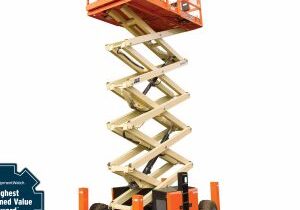

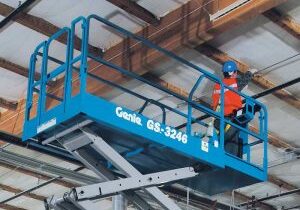

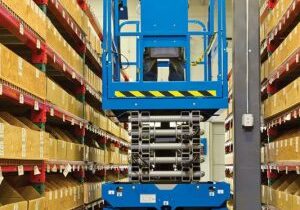

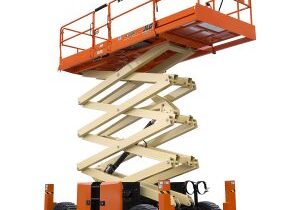

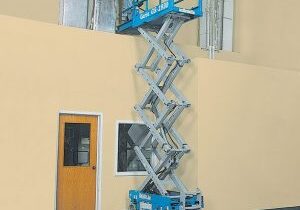

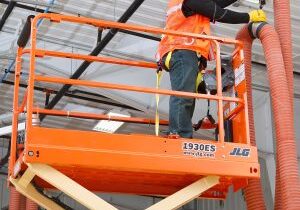

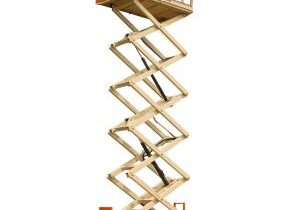

Other Scissor Lifts Models
