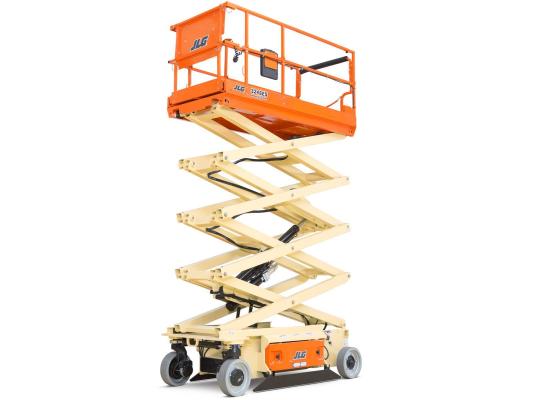

3246ES

Key Specs

  • Platform Height: 31 ft 9 in. / 9.68 m
  • Machine Width: 3 ft 10 in. / 1.17 m

Key Features

  • Quieter, cleaner operation for a variety of environments
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Tight turning radius for great maneuverability
  • Delivers 200% more battery life*

    *Compared to a competitive model under similar test conditions. Actual results may vary.

Features

  • Tight turning radius for great maneuverability
  • Delivers 200% more battery life*  *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Quieter, cleaner operation for a variety of environments
Specifications

  • Maximum Ground Bearing Pressure: 87 psi / 6.09 Kg/cm2
  • Ground Clearance: 5 in. / 0.13 m
  • Maximum Drive Height: 31 ft 9 in. / 9.68 m
  • Machine Height - Rails Folded: 6 ft 6 in. / 1.97 m
  • Platform Dimension B: 3 ft 8 in. / 1.12 m
  • Charger: 20 amp automatic
  • Gradeability: 25 %
  • Turning Radius - Inside: 0 in. / 0 m
  • Batteries: 4 x 6V, 220 amp-hr
  • Platform Height - Lowered: 4 ft 2 in. / 1.26 m
  • Lower Time: 62 sec.
  • Platform Capacity - Unrestricted: 700 lb / 317.51 kg
  • Drive Speed - Platform Elevated: 0.5 mph / 0.80 km/h
  • Machine Height: 7 ft 9 in. / 2.36 m
  • Tire Size: 16 x 5 in
  • Lift Time: 55 sec.
  • Machine Width: 3 ft 10 in. / 1.17 m
  • Maximum Lift Height: 31.8 ft / 9.68 m
  • Platform Dimension A: 8 ft 3 in. / 2.5 m
  • Platform Capacity - Extension: 250 lb / 113.40 kg
  • Wheelbase: 6 ft 10 in. / 2.08 m
  • Turning Radius - Outside: 7 ft 11 in. / 2.42 m
  • Hydraulic Pump: Fixed Displacement Gear
  • Machine Weight: 4975 lb / 2256.62 kg
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Brakes: Electric, Friction
  • Working Height: 37 ft 9 in. / 11.51 m
  • Platform Extension Length: 4 ft 2 in. / 1.27 m
  • Capacity - Hydraulic Reservoir: 1.7 gal. / 6.44 L
  • Drive Speed - Platform Lowered: 2.5 mph / 4.02 km/h
  • Platform Railing Height: 3 ft 7 in. / 1.1 m
