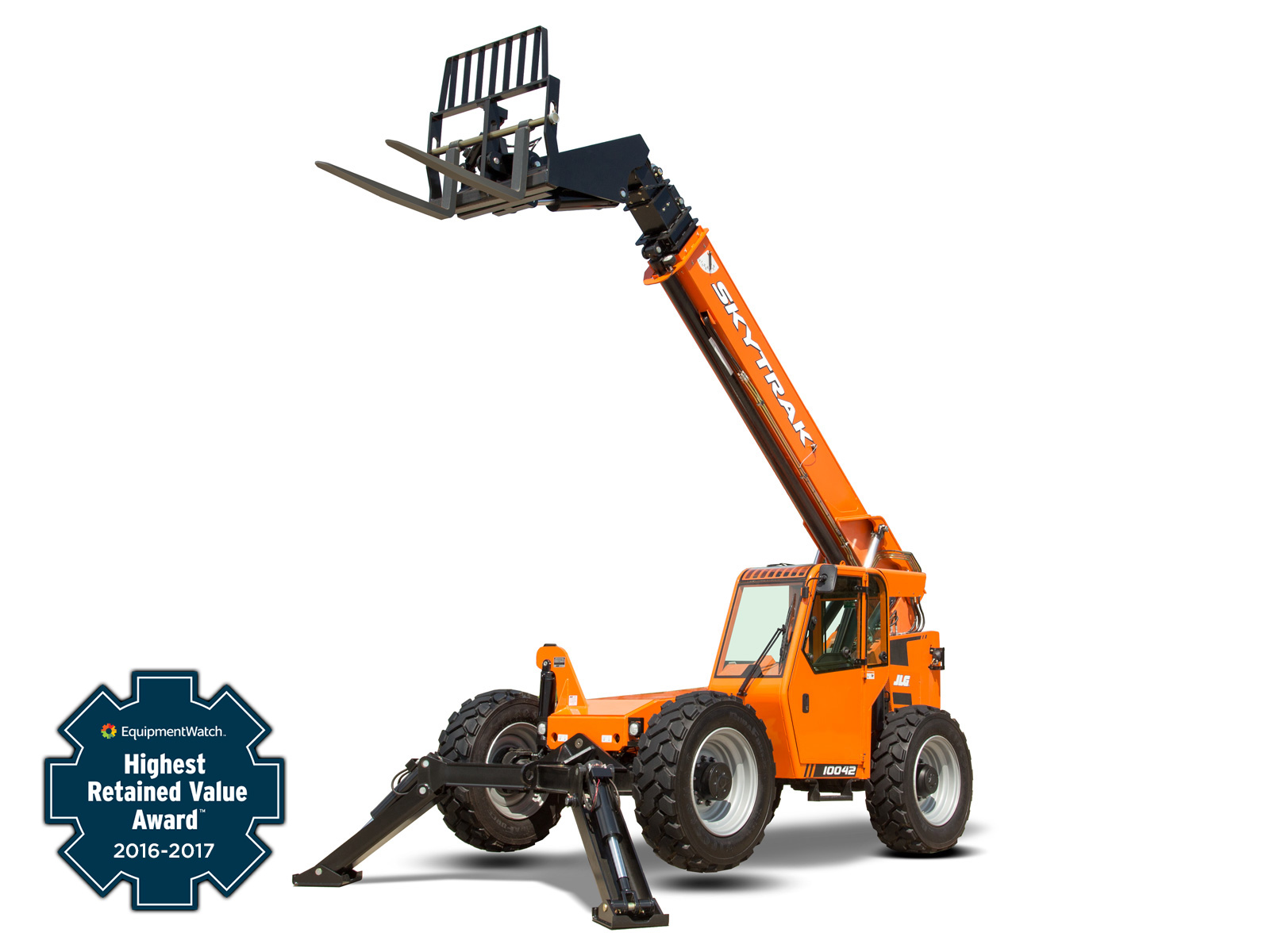

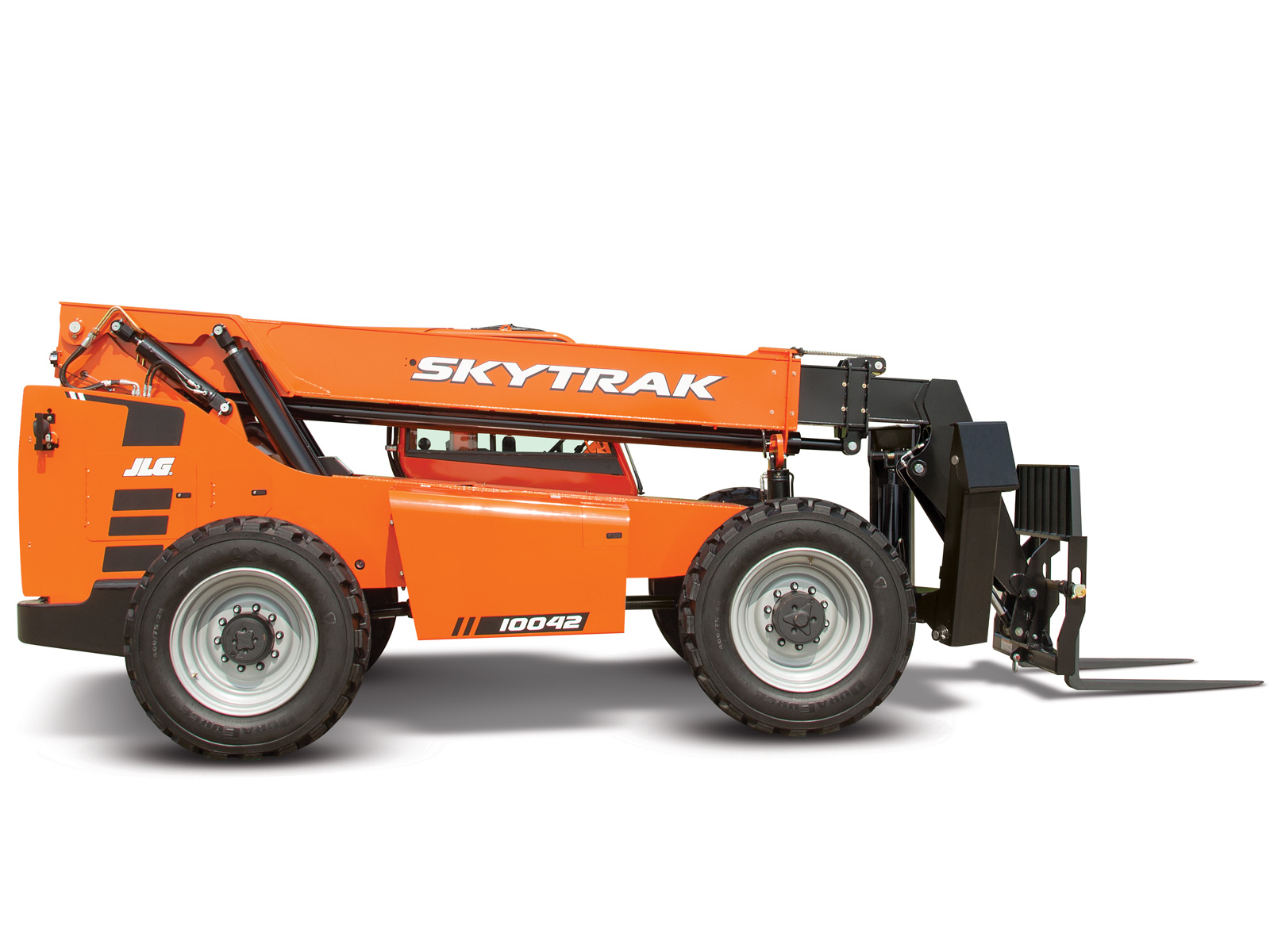

10042

Key Specs

  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Outriggers Up Max Lift Height: 42 ft 1 in. / 12.83 m
  • Maximum Lift Height: 42 ft 1 in. / 12.83 m
  • Maximum Reach: 26 ft 7 in. / 8.1 m

Key Features

  • New, intuitive single joystick controls all boom functions
  • Maximize productivity with improved boom speeds
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • Greater job site versatility—rear counterweight includes an integrated tow hitch
  • Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Take a virtual tour of the SkyTrak telehandlers

Features

  • Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Greater job site versatility—rear counterweight includes an integrated tow hitch
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • Maximize productivity with improved boom speeds
  • New, intuitive single joystick controls all boom functions
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Take a virtual tour of the SkyTrak telehandlers
Specifications

  • Transmission - Nr Reverse Gears: 3
  • Outriggers Up Max Lift Height: 42 ft 1 in. / 12.83 m
  • Speed - Maximum Telescope Out: 17.2 sec.
  • Engine Horsepower: 110 hp / 82.06 kW
  • Load Center: 2 ft / 0.61 m
  • Speed - Maximum Lower: 15 sec.
  • Maximum Reach: 26 ft 7 in. / 8.1 m
  • Axle-Rear: Oscillating
  • Capacity - Fuel Tank: 35 gal. / 132.49 L
  • Transmission Type: Powershift
  • Ground Clearance: 1 ft 6 in. / 0.46 m
  • Function Pump Type: Var Load Sensing Piston
  • Tire Size: 400/75-28
  • Axle-Front: High Bias, Limited Slip
  • Outriggers Up Lift Capacity Full Height: 6000 lb / 2721.55 kg
  • Engine Model: QSB3.8L Tier 4 Final
  • Outside Turning Radius: 14 ft 2 in. / 4.32 m
  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Speed - Maximum Telescope In: 15.1 sec.
  • Maximum Engine RPM: 1500 rpm
  • Outriggers Up Lift Capacity Full Reach: 2000 lb / 907.18 kg
  • Service Brake Type: Wet Multi-Disc
  • Engine Manufacturer: Cummins
  • Drawbar Pull: 24500 lb / 11113.01 kg
  • Speed - Maximum Lift: 16.4 sec.
  • Transmission - Nr Forward Gears Standard: 4
  • Machine Width: 8 ft 6 in. / 2.59 m
  • Operating Vehicle Weight: 27300 lb / 12383.07 kg
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Speed - Maximum Travel: 20 mph / 32.19 km/h
  • Machine Length: 20 ft 8 in. / 6.3 m
  • Wheelbase: 10 ft / 3.04 m
  • Outriggers or Stabilizers: Yes
  • Frame Leveling: 10 Degrees
