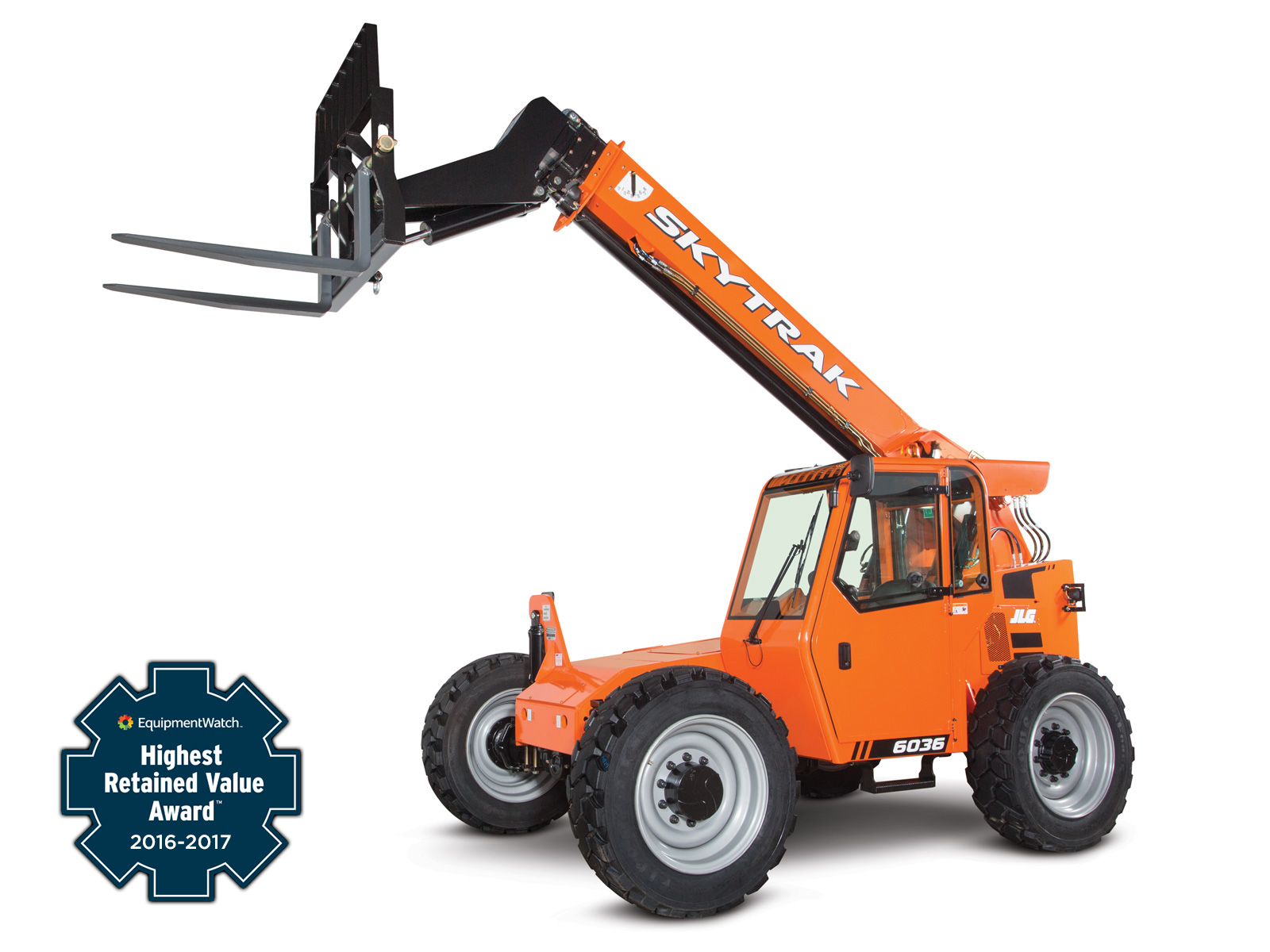

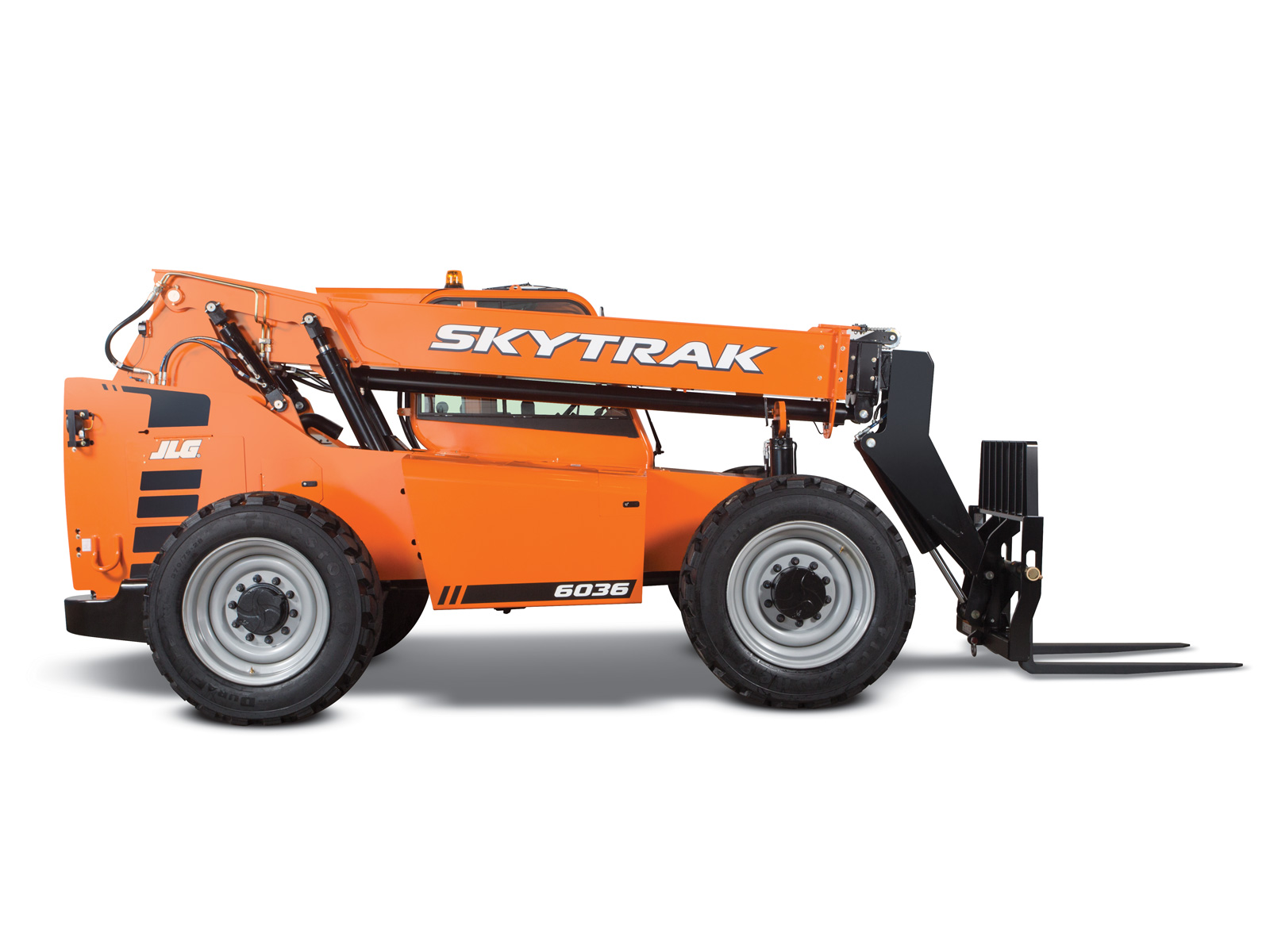

6036
Key Specs
- Maximum Lift Capacity: 6000 lb / 2721.55 kg
- Maximum Lift Height: 36 ft 1 in. / 11 m
- Maximum Reach: 22 ft 4 in. / 6.81 m
Key Features
- New, intuitive single joystick controls all boom functions
- Maximize productivity with improved boom speeds
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Greater job site versatility—rear counterweight includes an integrated tow hitch
Features
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
- New, intuitive single joystick controls all boom functions
- 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Greater job site versatility—rear counterweight includes an integrated tow hitch
- Maximize productivity with improved boom speeds
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
Specifications
- Load Center: 2 ft / 0.61 m
- Tire Size: 370/75-28
- Ground Clearance: 1 ft 3 in. / 0.38 m
- Frame Leveling: 10 Degrees
- Function Pump Type: Gear
- Machine Height: 8 ft 4 in. / 2.54 m
- Maximum Lift Height: 36 ft 1 in. / 11 m
- Drawbar Pull: 22000 lb / 9979.03 kg
- Speed - Maximum Lower: 9 sec.
- Speed - Maximum Telescope Out: 13.5 sec.
- Outriggers or Stabilizers: No
- Speed - Maximum Telescope In: 14 sec.
- Engine Horsepower Optional: 85 hp / 63.41 kW
- Machine Length: 18 ft 8 in. / 5.69 m
- Engine Horsepower: 74 hp / 55.20 kW
- Outside Turning Radius: 13 ft 9 in. / 4.19 m
- Maximum Engine RPM: 1400 rpm
- Transmission - Nr Forward Gears Standard: 4
- Maximum Reach: 22 ft 4 in. / 6.81 m
- Speed - Maximum Lift: 11.5 sec.
- Transmission Type: Powershift
- Operating Vehicle Weight: 21300 lb / 9661.52 kg
- Maximum Lift Capacity: 6000 lb / 2721.55 kg
- Engine Model Optional: QSF3.8L Tier 4 Final
- Lift Capacity at Max Reach: 1800 lb / 816.47 kg
- Axle-Rear: Oscillating
- Transmission - Nr Reverse Gears: 3
- Machine Width: 8 ft 3 in. / 2.51 m
- Axle-Front: High Bias, Limited Slip
- Wheelbase: 9 ft 5 in. / 2.87 m
- Speed - Maximum Travel: 19 mph / 30.58 km/h
- Engine Manufacturer: Cummins
- Capacity - Fuel Tank: 35 gal. / 132.49 L
