Features
  • Fuel-efficient Tier 4 final Deutz engine
  • Universal skid steer adapter compatible with existing skid steer attachments
  • Variety of attachments for versatility in handling jobsite challenges

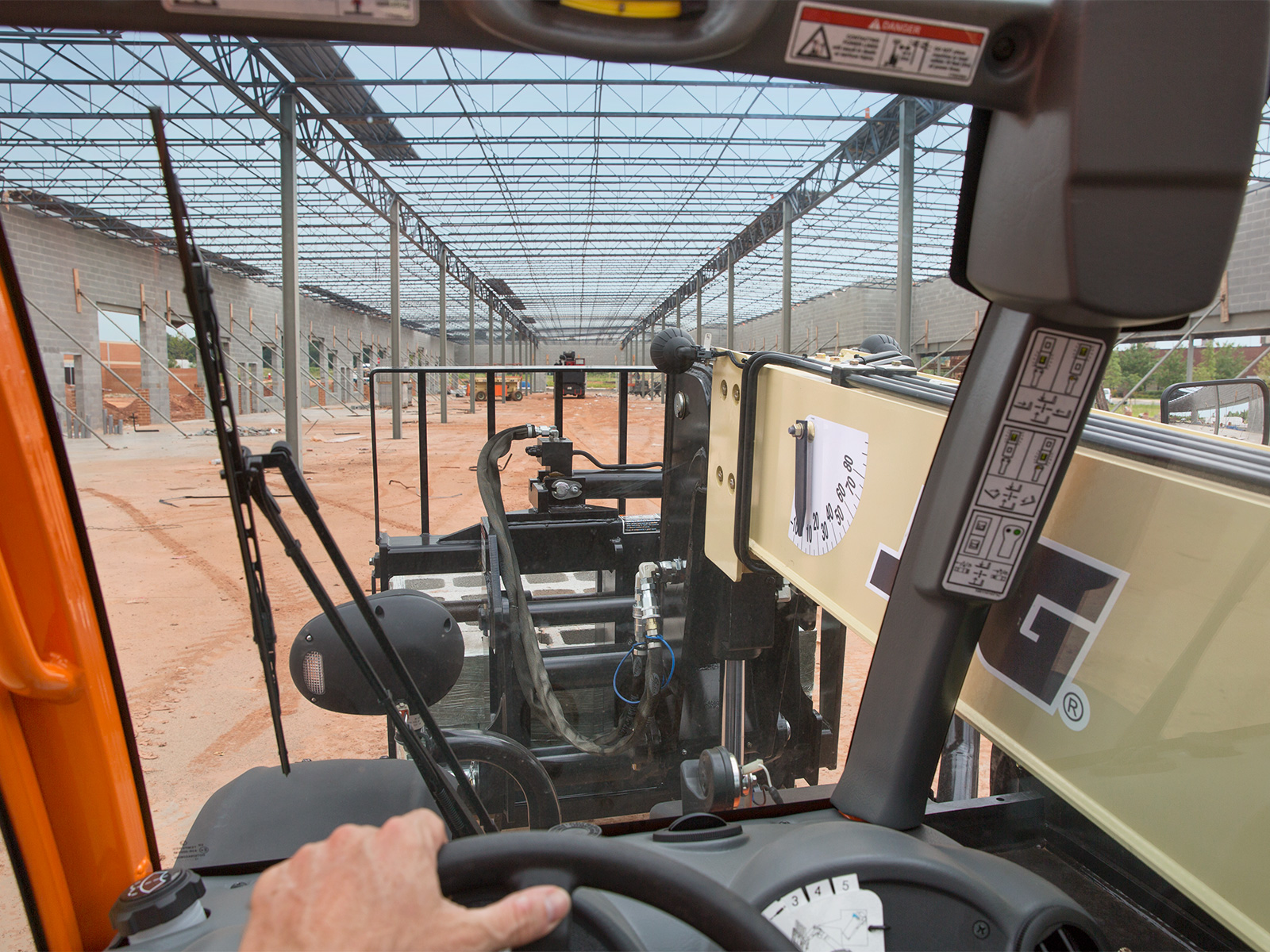

  • Comfortable cab to reduce operator fatigue
  • Tight turning radius to maneuver through crowded jobsites
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Oscillating
  • Breakout Force: 8093 lbf / 36 kN
  • Cab Width: 2 ft 10 in. / 0.87 m
  • Capacity - Coolant: 3 gal. / 13.20 L
  • Capacity - Engine Oil: 2 gal. / 9.10 L
  • Capacity - Fuel Tank: 24 gal. / 91 L
  • Capacity - Hydraulic Reservoir: 16 gal. / 61 L
  • Drawbar Pull: 8902 lbf / 39.60 kN
  • Engine Horsepower: 74 hp / 55.40 kW
  • Engine Manufacturer: Deutz
  • Engine Model: TD 2.9 L4
  • Frame Leveling: 0 Degrees
  • Function Pump Type: Gear
  • Ground Clearance: 1 ft / 0.31 m
  • Hydraulic System Flow: 19 gal/min. / 72.30 L/Min
  • Hydraulic System Pressure: 3495 psi / 241 bar
  • Lift Capacity at Full Height: 4409 lb / 2000 kg
  • Lift Capacity at Max Reach (Stabs Up): 1764 lb / 800 kg
  • Load Center: 1 ft 8 in. / 0.5 m
  • Machine Height: 6 ft 4 in. / 1.92 m
  • Machine Length: 12 ft / 3.66 m
  • Machine Length (Forks): 12 ft 6 in. / 3.82 m
  • Machine Width: 6 ft / 1.83 m
  • Maximum Engine RPM: 2300 rpm
  • Maximum Lift Capacity: 5512 lb / 2500 kg
  • Maximum Lift Height: 18 ft / 5.60 m
  • Maximum Reach: 11 ft / 3.30 m
  • Operating Vehicle Weight: 11001 lb / 4990 kg
  • Outriggers or Stabilizers: No
  • Outside Turning Radius: 10 ft 6 in. / 3.2 m
  • Service Brake Type: Wet Multi-Disc
  • Speed - Maximum Crowd: 3 sec.
  • Speed - Maximum Dump: 2 sec.
  • Speed - Maximum Lift: 7 sec.
  • Speed - Maximum Lower: 5 sec.
  • Speed - Maximum Telescope In: 4 sec.
  • Speed - Maximum Telescope Out: 7 sec.
  • Speed - Maximum Travel: 14.91 mph / 24 km/h
  • Tire Size: 12 X 16.5 12PR
  • Towing Capacity: 6614 lb / 3000 kg
  • Track Width: 4 ft 11 in. / 1.51 m
  • Transmission Type: Hydrostatic
  • Wheelbase: 7 ft 6 in. / 2.29 m

Documentation

Download at http://www.riekesequipment.com/new-equipment/aerial-lifts/telehandlers/G5-18A

G5-18A Spec Sheet
Telehandler Attachment Guide
JLG Telehandler Family Brochure
