Features
  • Larger capacity of 600 lb

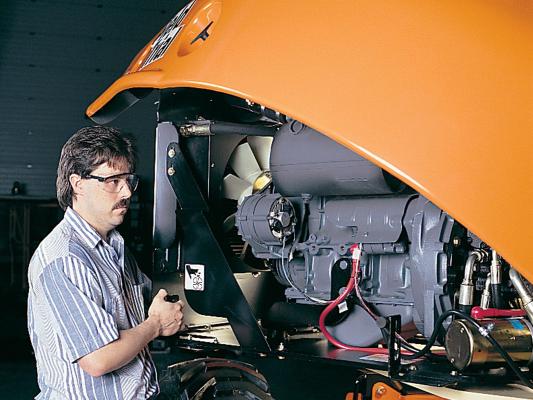

  • More durability and serviceability thanks to the new DuraTough hood design
  • Improved multifunction capability increases productivity
  • Auxiliary Power: 12 Volts DC
  • Capacity - Fuel Tank: 22 gal. / 83.28 L
  • Capacity - Hydraulic Reservoir: 36 gal. / 136.27 L
  • Drive Speed - 4WD: 4.50 mph / 7.24 km/h
  • Engine Type - Diesel: Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
  • Engine Type - Dual Fuel: GM Vortec 3000 MPFI 82 hp 61 kW
  • Gradeability - 4WD: 45 %
  • Ground Bearing Pressure: 60 psi / 4.20 Kg/cm2
  • Ground Clearance: 1 ft / 0.31 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 33 ft 3 in. / 10.13 m
  • Machine Height: 8 ft 1 in. / 2.47 m
  • Machine Length: 24 ft 10 in. / 7.57 m
  • Machine Length - Transport: 24 ft 10 in. / 7.57 m
  • Machine Weight: 13425 lb / 6089.48 kg
  • Machine Width: 7 ft 7 in. / 2.31 m
  • Platform Capacity - Restricted: 1000 lb / 453.59 kg
  • Platform Capacity - Unrestricted: 600 lb / 272.16 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 40 ft / 12.19 m
  • Platform Height: 40 ft / 12.19 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tire Size: 12 x 16.5 Pneumatic Lug Tread Tires
  • Turning Radius - Outside: 15 ft 11 in. / 4.84 m

Documentation

Download at http://www.riekesequipment.com/new-equipment/aerial-lifts/telescopic-booms/400S

400-Series-Telescopic-Boom-Spec-Sheet
Engine Powered AWP Brochure
