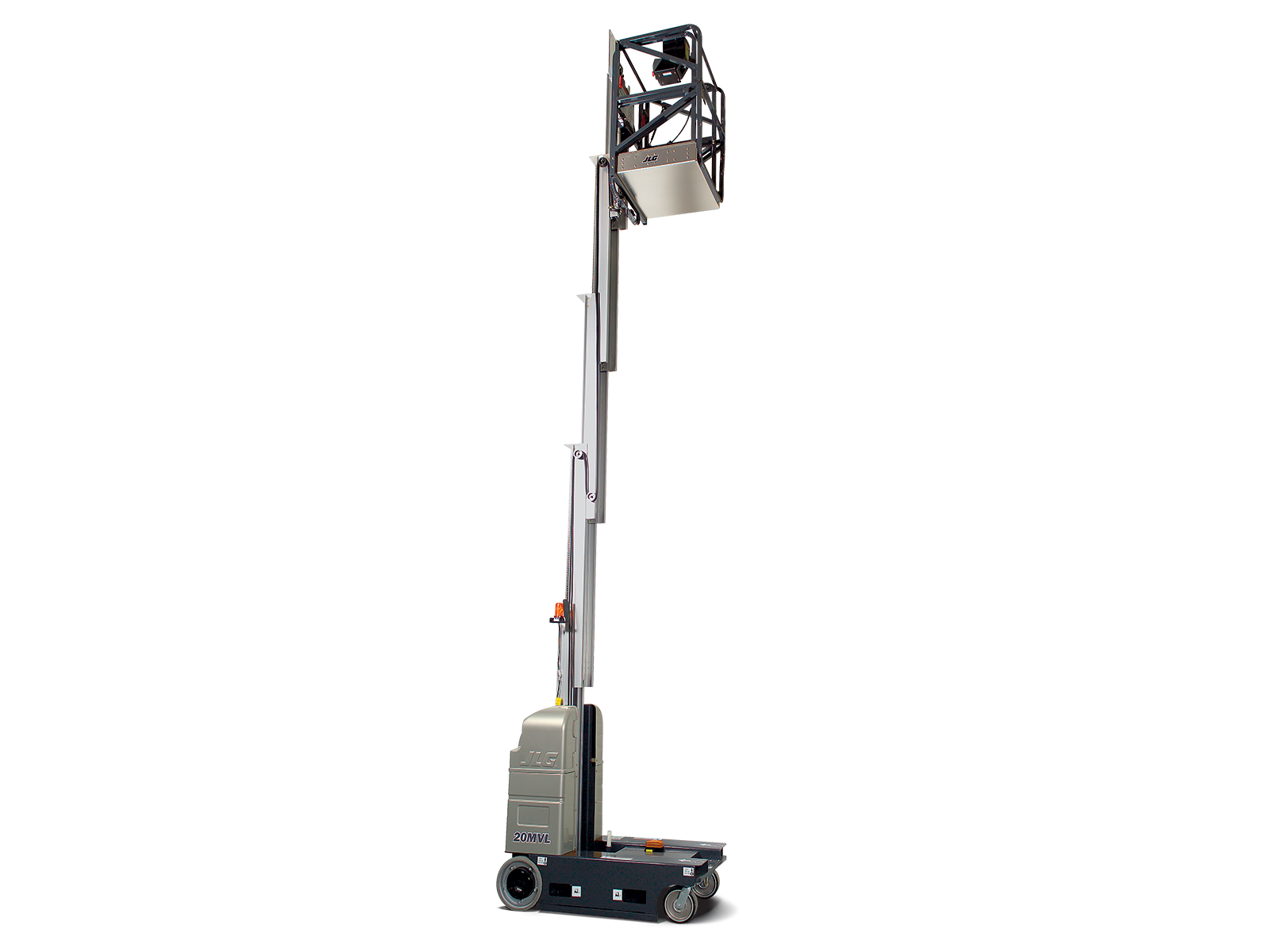

Features
  • Rigid mast for operator comfort and stability
  • Exclusive Point & Go single joystick control operates drive and steer, and lift and lower
  • Five platform options with exclusive Quick Change mountings for one-minute change-outs
  • Batteries: Two Sealed-100 AH 12 Volt
  • Drive Speed - Platform Elevated: 0.60 mph / 0.97 km/h
  • Drive Speed - Platform Lowered: 3.50 mph / 5.63 km/h
  • Drive System: 4 Brush Direct Electric
  • Gradeability: 20 %
  • Ground Clearance: 2 in. / 0.05 m
  • Ground Entry Height: 1 ft 6 in. / 0.46 m
  • Machine Height: 6 ft 6 in. / 1.98 m
  • Machine Length: 4 ft 6 in. / 1.36 m
  • Machine Weight: 2325 lb / 1054.60 kg
  • Machine Width: 2 ft 6 in. / 0.75 m
  • Maximum Drive Height: 19 ft 6 in. / 5.94 m
  • Maximum Lift Height: 20 ft / 5.94 m
  • Platform Capacity: 350 lb / 158.76 kg
  • Platform Dimension A: 2 ft 2 in. / 0.66 m
  • Platform Dimension B: 2 ft 4 in. / 0.71 m
  • Platform Height: 19 ft 1 in. / 5.82 m
  • Platform Height: 19 ft 1 in. / 5.82 m
  • Wheel Size - Front Caster: 8 x 2.5
  • Wheel SIze - Rear: 12.62 x 4
  • Working Height: 25 ft 1 in. / 7.65 m

Documentation

Download at http://www.riekesequipment.com/new-equipment/aerial-lifts/vertical-mast-lifts/20MVL

20MVL spec sheet
Vertical Lifts Brochure
