• Serial communications and solid state switches with soldered wire connections increasing reliability and uptime, replace the hydraulic pump contactor, forward and reverse contactors and their corresponding maintenance costs.
  • Bottom mounted steering control handle’s ergonomic, easy-to operate, finger tip control of proportional lift/ lower, travel speed and direction, and an optional sideshift makes load handling easier and more precise, increasing your productivity.
  • Truck diagnostic information can be read using a hand-held programming tool (optional) or by checking the status of the LED indicator mounted on the controller. And all wiring is tagged for quick, easy circuit tracing.
  • Our three operator selectable performance modes allow you to choose between three preset user configurations that affect acceleration, deceleration (neutral braking), and top travel speed.

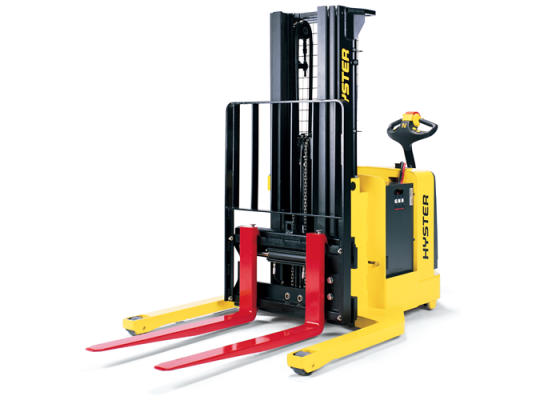

  • The heavy-duty Walkie Stacker series features a tough, unitized construction that is robotically welded, for superior reliability.
  • The creep or “turtle” speed button, located conveniently on the bottom-side of the handle allows you to maneuver the ZA-straddle stacker series in and out of tight areas, with the steer handle in the upright position.
  • The Hyster walkie stacker product line’s advantageous head-length and multi-function, bottom mounted steering control handle gives you incredible load handling control with excellent maneuverability.

  • Model Load Capacity (lbs) Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min) Lower Lift Speed (ft/min)
    W25ZA2 Straddle Stacker 2500  24 3.5 30 60
    W30ZA2 Straddle Stacker 3000  24 3.5 30 60
    W40ZA Straddle  Stacker 4000 24 3.6 27.5 52.5
  • Capacity: 2,500 - 4,000 lbs
  • Max Height: 186
  • Max Weight: 4000 lbs
  • Series Title: W25-30ZA2-W40ZA
  • Weight: lbs
