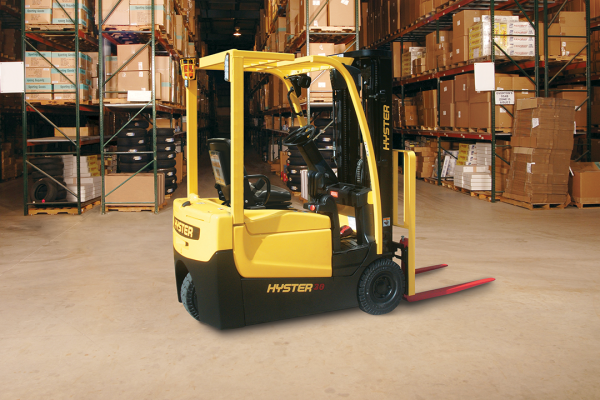

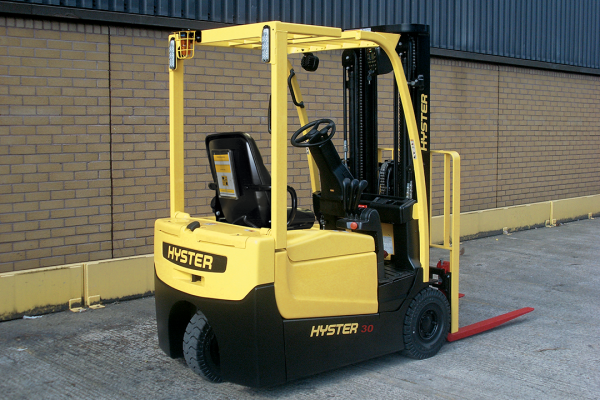

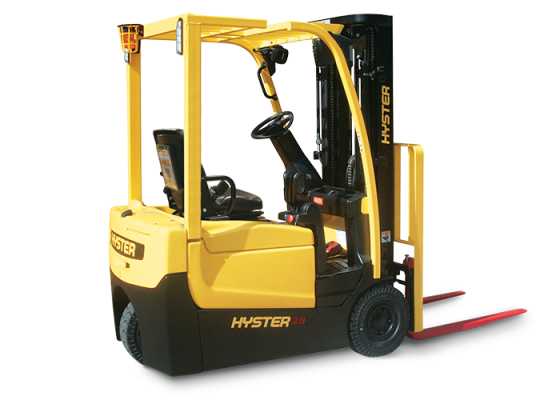

A25-30XNT

Ergonomic Forklifts Designed for Productivity and Maneuverability

The A25-30XNT series has been designed to maneuver in the tightest of spaces and to move pallets in containers and warehouses, delivering a cost effective solution to meet the requirements of applications where space is at a

premium. This series offers many functions and features, including extended shift performance settings and a high mounted Multifunction Display, which are standard across the range of Hyster® electric forklift trucks.

Features

  • 24-volt rear-wheel drive with AC motors throughout provides smooth acceleration and excellent travel, torque and lifting performance, delivering efficient and productive load handling.
  • This truck has been intelligently designed, focusing on the operator. Generous foot space, an intuitive pedal arrangement and a low step height offer a comfortable working space for the operator. This means on/off access and driving in reverse cause less fatigue over long shifts.
  • A25-30XNT trucks provide tremendous flexibility to customize the truck’s hydraulic and traction performance to your application. A trained Hyster technician can maximize your truck’s performance, whether it requires extended battery shift life, aggressive performance or fast travel speeds for long hauls.
  • Strong chassis construction provides excellent durability and stability, ensuring the operator can maneuver and carry out handling operations with confidence, enhancing productivity.
Specifications

  • Max Weight: 3000 lbs
  • Type: THREE WHEEL ELECTRIC FORKLIFT
  • Max Height: 192
  • Capacity: 2,500 - 3,000 lbs
  • Series Title: A25-30XNT


Model Model Designation Load Capacity (lbs) Turning Radius Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
A25XNT 3 Wheel Electric Trucks 2500 55.0 24 7.8 101
A30XNT 3 Wheel Electric Trucks 3000 57.2 24 7.8 101
