J155-190XNL

POWERED BY LITHIUM-ION TECHNOLOGY



The Hyster® J155-190XNL sit-down counterbalanced forklift powered by integrated lithium-ion technology is designed to satisfy a need for a zero emission alternative in a high capacity range for both indoor and outdoor operation. Integrated lithium-ion power is a suitable solution for heavy-duty applications, providing ICE-like performance with zero emissions.

The lithium-ion battery in the J155-190XNL truck is completely maintenance free which can increase your uptime and reduce maintenance and labor costs. If you are operating separate indoor and outdoor trucks, utilizing the J155-190XNL can cut your fleet in half. Why? Because this truck is designed to work in both indoor and outdoor applications.

The 350-volt high-power sealed lithium-ion battery requires no maintenance and can be charged faster and has a longer overall life than a traditional lead acid battery. The battery fully charges from lift lock-out (12% state of charge) in less than 90 minutes with the required charger, and once charged, it stays over 90% efficient throughout operation.

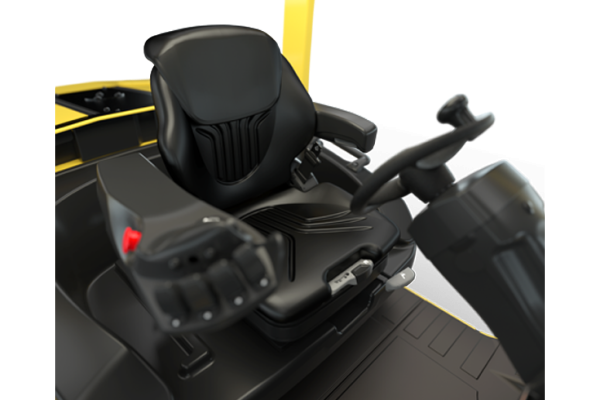

Your operators will enjoy low noise levels and no ICE exhaust from this lithium-ion powered truck, helping to reduce mental and physical fatigue throughout the shift. The standard air ride seat and hydraulic mini-lever controls add to operator comfort.

J155-170XNSL truck models with a short counterweight are available to give extra maneuverability in applications where space is in short supply. The shortened counterweight and Turn Assist System helps provide an outstanding minimum outside turning radius and right angle stack.



Specifications

  • Max Height: 121
  • Series Title: J155-190XNL
  • Capacity: 15,000 - 19,000 lbs
  • Max Weight: 19000 lbs
  • Type: Electric Pneumatic Tire


Model Load Capacity (lbs) Load Centre Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
J155XNL 15,000 24 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet 14.9 84.6
J170XNL 17,000 24 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet 14.9 78.7
J175XNL36 17,500 36 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet 13 62.9
J190XNL 19,000 24 350V Integrated lithium-ion / Traction Motor Type – Permanent Magnet 13 70.8
