B3/30AC

BENDI FRONT WHEEL DRIVE ARTICULATING VNA WAREHOUSE FORKLIFT

The Bendi model B3/30AC works in aisles as narrow as 72″ (1.8M), has a basic capacity of 3,000 lbs. (1363kg) at 24″ (600mm) load center and has lift heights available to 30′ (9.14M).

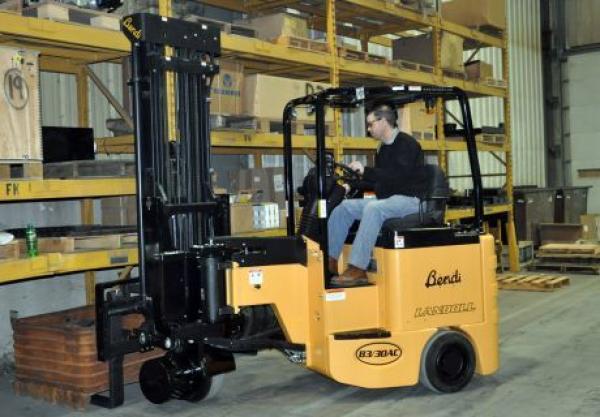

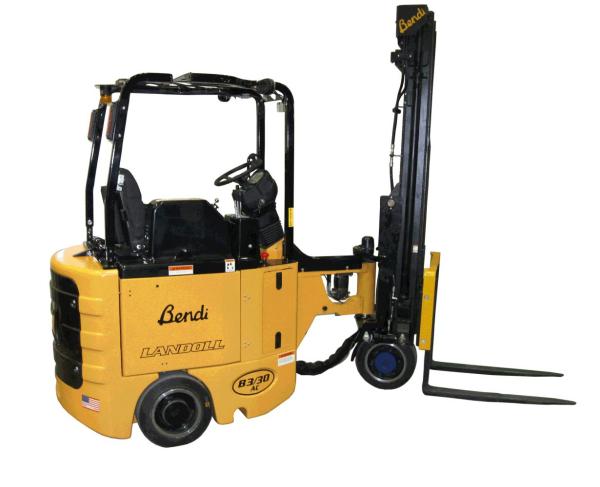

The Bendi B3/30AC is a 3-wheel articulating forklift with a single poly front drive tire and solid rubber rear tires. Front articulation of 200, narrow mast and a compact front end allow easy stacking in Very Narrow Aisles. The B3/30AC can work inside and outside on paved surfaces. The B3/30AC does all the jobs of a reach truck in aisles at least 40″ (1M) smaller.

EXCEPTIONAL PERFORMANCE AND MANEUVERABILITY

Equipped with the LandActive control and the Landoll DuraSteerTM front wheel hydraulic steering, the B3/30AC provides exceptional control and makes load placement and retrieval superior to the competition.

MAXIMIZES MATERIAL HANDLING PRODUCTIVITY

The versatile Bendi B3/30AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in very narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. All tires on the Bendi B3/30AC are 18″ (457mm) diameter and the truck has great underclearance for avoiding floor obstructions.

*Based on 48 (1200mm) long x 40 (1000mm) wide load.

Features

  • 3-Wheel Design, Single Front Wheel Drive Provides Excellent Maneuverability and Traction
  • LandActive Control Provides Enhanced Traction Control Based on Steering Angle
  • Cold Storage Conditioned to -22F (-30C)
  • Integral Sideshifter Makes Placing and Picking Loads Effortless
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • High Visibility Mast Allows Optimum Safety and Control
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • 48 Volt Electrical System and Large Capacity Battery Compartment
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • 3,000 lb. (1363kg) Capacity at 24
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
Specifications

  • Cab Floor Height: 31 in / 787 mm
  • Capacity: 3000 lbs / 1363 kg
  • Chassis Width: 44.8 in / 1138 mm
  • Drive Motor Rating: 5.1 kW
  • Front Articulation: 200 degrees
  • Gradeability (loaded): 5%
  • Gradeability (unloaded): 8%
  • Hydraulic Control Type (Curtis): AC
  • Hydraulic Motor Rating: 12 kW
  • Lift Speed (loaded): 90 fpm / 27.4 mpm
  • Lift Speed (unloaded): 100 fpm / 33.5 mpm
  • Load Center: 24 in / 600 mm
  • Lowering Speed (loaded): 100 fpm / 30.4 mpm
  • Lowering Speed (unloaded): 90 fpm / 27.4 mpm
  • Mast Tilt: 2 / 1 degrees
  • Overall Length to Face of Forks: 109.9 in / 2791 mm
  • Overhead Guard Height: 87 in / 2209 mm
  • Power Source: 48 Volt Battery
  • Seat Height: 51 in / 1295 mm
  • Traction Control Type (Curtis): AC
  • Travel Speed (loaded): 5.5 mph / 8.9 kph
  • Travel Speed (unloaded): 6 mph / 9.7 kph
  • Underclearance (Under Mast): 3 in / 7.6 cm
  • Weight with Battery: 12800 lbs / 5818 kg
  • Wheel Size (front): 18x7 in / 457x178 mm
  • Wheel Size (rear): 18x7 in / 457x178 mm
  • Wheelbase: 69.6 in / 1768 mm
