B55AC-HL

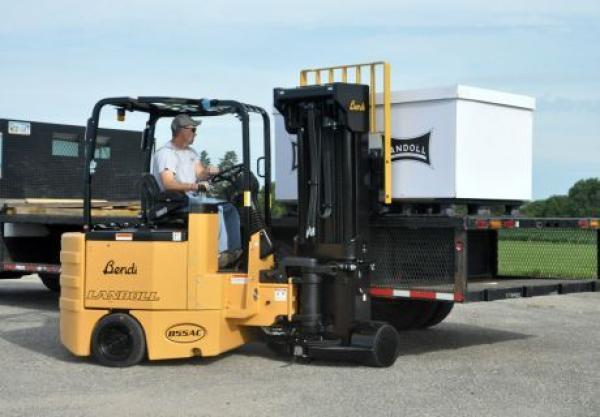

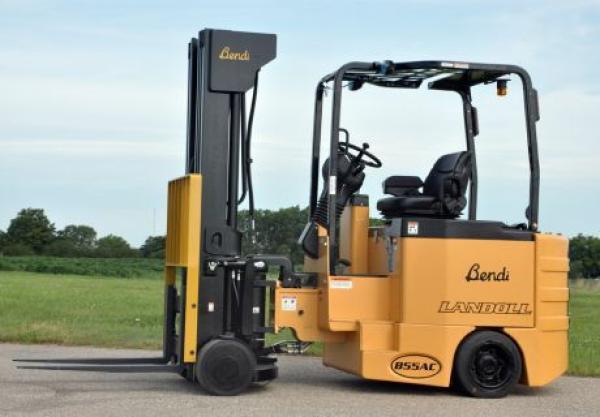

BENDI REAR WHEEL DRIVE HIGH CAPACITY, HIGH LIFT NARROW AISLE MULTIPURPOSE ELECTRIC ARTICULATING FORKLIFT

The Bendi models B55AC and B55AC-HL work in aisles as narrow as *84″ (2.13M). The B55AC high volume model has a basic capacity of 5,500 lbs. (2500kg) at 24″ (600mm) load center and has lift heights available to 30′ (9.14M). The B55AC-HL (High Lift) Model has a basic capacity of 4,500 lbs. (2045kg) and lift heights available to 41 (12.5M).

Both the B55AC and the B55AC-HL models are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available. Both models can work inside and outside on paved surfaces and have a floating front axle, allowing the truck to ride smoothly over uneven floors and do the jobs of reach and counterbalanced trucks but with much heavier loads and in much narrower aisles.

EXCEPTIONAL PERFORMANCE AND MANEUVERABILITY

Equipped with the Landoll DuraSteerTM front wheel hydraulic steering, the B55AC provides exceptional control and makes load placement and retrieval superior to the competition.

MAXIMIZES MATERIAL HANDLING PRODUCTIVITY

The versatile Bendi B55AC and B55AC-HL forklifts replace conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. The Bendi B55AC has large diameter tires and the truck has great underclearance for avoiding floor obstructions. One truck can go from inside the dock to the rack, eliminating staging and additional operators and support forklifts.

*Based on 48 (1200mm) long x 40 (1000mm) wide load.

Features

  • The B55AC-HL has a Fixed Mast and Tilting Carriage for Reduced Mast Deflection and Load Movement at High Elevations
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
  • Cold Storage Conditioned to -22F (-30C)
  • Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
  • High Visibility Mast Allows Optimum Safety and Control
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • B55AC 5,500 lb. (2500kg) Capacity at 24
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • B55AC-HL 4,500 lb. (2045kg) Capacity at 24
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction
  • 48 Volt Electrical System
Specifications

  • Battery Compartment Height (Floor to Top of Battery Tray): 19 in / 48 cm
  • Capacity: 4,500 lbs / 2,045 kg
  • Fork Carriage Width: 41 in / 104 cm
  • Fork Length: 40 in / 101 cm
  • Gradeability (loaded): 15%
  • Gradeability (unloaded): 15%
  • Hydraulic Control Type (Induction): AC
  • Hydraulic Motor Rating: AC type / 16.8 kWh
  • Intersecting Aisle: 114 in / 289 cm
  • Lift Speed (loaded): 90 fpm / 27.4 mpm
  • Lift Speed (unloaded): 110 fpm / 33.5 mpm
  • Lost Load Center: 12 in / 30.5 cm
  • Lowering Speed (loaded): 100 fpm / 30.4 mpm
  • Lowering Speed (unloaded): 90 fpm / 27.4 mpm
  • Mast Tilt (Up to 293 inches): 3 / 3 degrees
  • Mast Tilt (Up to 294 inches and higher): 2 / 1 degrees
  • Operator Floor Height: 31 in / 79 cm
  • Out to Out Fork Spread: 9.4-39.5 in / 24-100 cm
  • Overall Length Fork to Face (Mast Vertical): 109 in / 277 cm
  • Overhead Guard Height: 89 in / 226 cm
  • Overhead Guard Width: 40 in / 102 cm
  • Overall Width: 56 in / 142 cm
  • Rear Overhang: 28 in / 71 cm
  • Right Angle Stacking Aisle: 84 in / 213 cm
  • Tilt, Carriage: 2 / 1 degrees
  • Traction Control Type (Curtis): AC
  • Traction Motor Rating: AC type / 7.5 ea - 15 Total kWh
  • Travel Speed (loaded): 6.5 mph / 10.5 kph
  • Travel Speed (unloaded): 7 mph / 11.3 kph
  • Underclearance (Under Mast): 3 in / 7.6 cm
  • Weight with Battery: 17,810 lbs / 8,095 kg
  • Wheel Size (front): 14x6 in / 36x15 cm
  • Wheel Size (rear): 18x9 in / 46x23 cm
  • Wheelbase: 69 in / 175 cm
