• Outstanding visibility and ergonomics compared with other trucks of this type are another key trait of these trucks with integrated arm lever or joystick controls and a low cowl enabling sweeping views of the front end. Rearward over the shoulder visibility is also uncluttered thanks to the cab design with cab posts pushed out of the corners. Hydraulically assisted steering minimizes the effort required to get into and out of tight spaces.

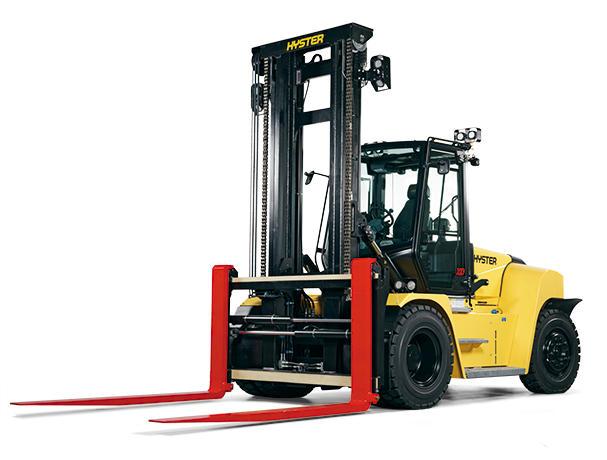

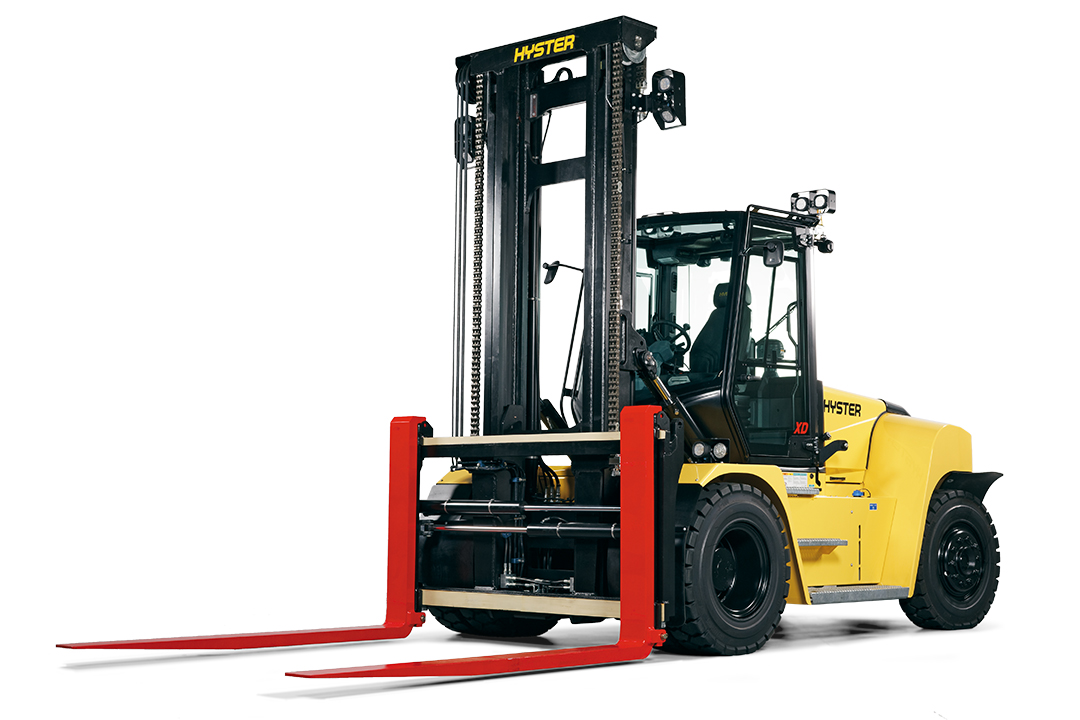

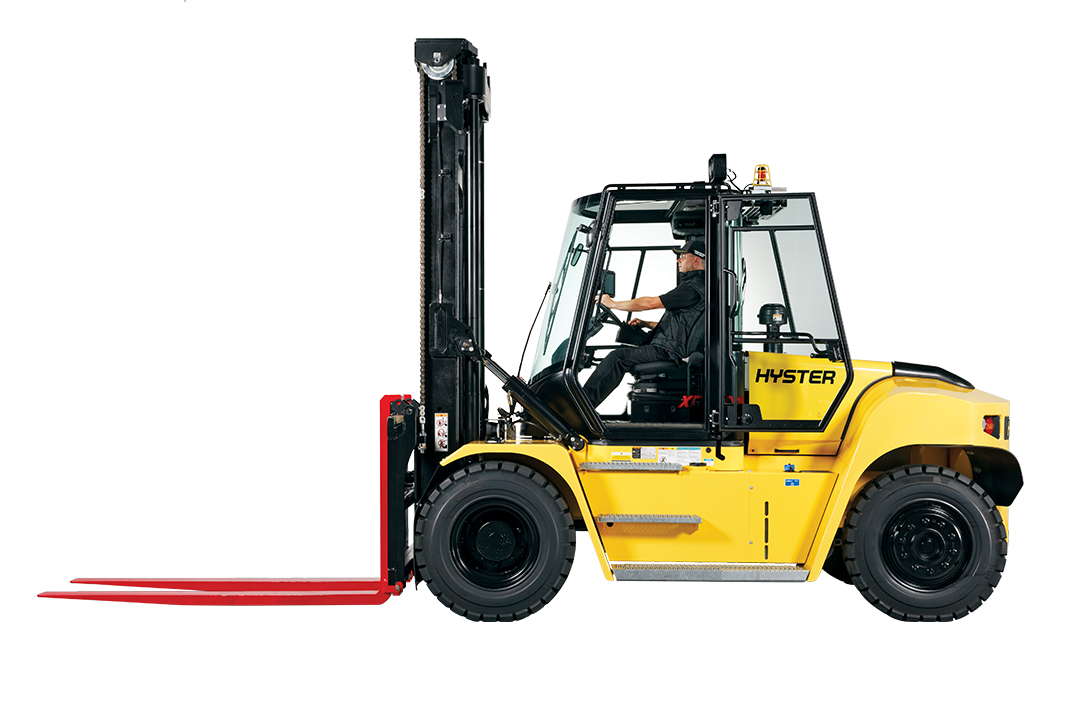

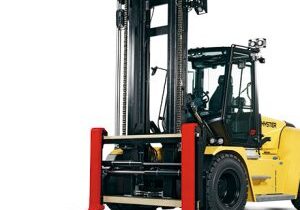

  • Hyster H300-360XD and H210-250XD48 series trucks feature a capable Cummins QSB 6.7L diesel engine equipped with exhaust gas recirculation (EGR) and a variable geometry turbocharger. The engine is mated to a ZF WG 161 3-speed powershift transmission.
  • Greaseable load rollers on the mast provide durability and long life in the most heavy duty operating conditions.
  • EPA Tier 4 Final compliant innovative technology featuring a Selective Catalytic Reduction (SCR) system using urea (Diesel Exhaust Fluid), a Diesel Oxidation Catalyst (DOC), and a dosing module for urea injection.
  • On-demand cooling featuring four separate cooling cores (engine, transmission, charge air cooler, and hydraulic system). The cores are horizontally stacked and are individually replaceable. The integrated hydraulic oil cooler maintains normal system operating temperatures at high ambient temperatures.
  • Designed for versatility in multiple applications with attachments used for paper roll clamps, pipe clamps, tire handlers and other attachments in multiple industry segments.
  • On-demand hydraulics with advanced variable displacement pump (VDP) technology provides industry leading low fuel consumption without sacrificing lifting capability.
  • Routine maintenance can be done quickly because with the side tilting ComforCab II™. Ease of serviceability with dual gull wings that provide seamless access for daily checks and easy maintenance. The powered cab tilt feature provides access to major components in seconds.
  • Get more for less with competitive industry 4-mode speeds and superb travel speeds. Front end options enable true rated capacity of various carriages for maximum productivity.

  • Model Model Designation Load Capacity (lbs) Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
    H210XD48 Industrial Forklift 21000 17.4 81.0
    H230XD48 Industrial Forklift 23000 17.4 81.0
    H250XD48 Industrial Forklift 25000 17.3 81.0
    H300XD Industrial Forklift 30000 17.4 98.4
    H330XD Industrial Forklift 33000 17.4 98.4
    H360XD Industrial Forklift 36000 17.3 98.4
  • Capacity: 21,000 - 36,000 lbs
  • Max Height:
  • Max Weight: 36000 lbs
  • Series Title: H210-250XD48, H300-360XD
  • Type: BIG TRUCK
  • Weight: lbs
