Features
  • Large foot room on floor plate
  • Meets EPA emissions regulation requirements

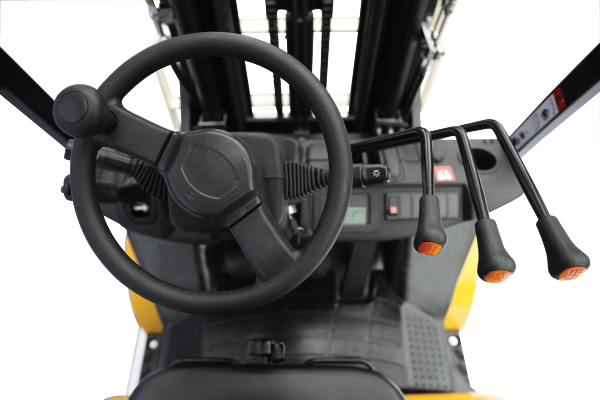

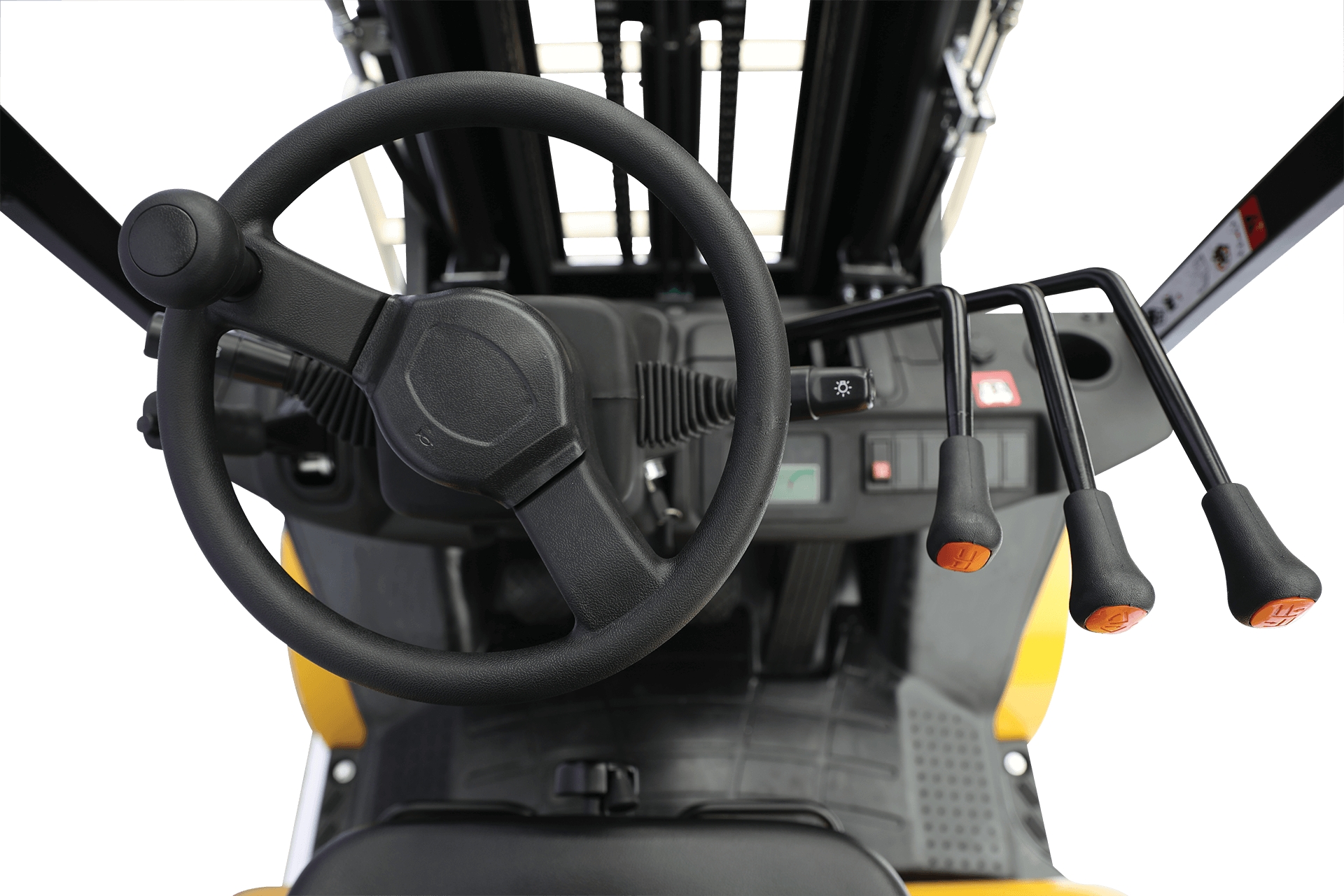

  • Small diameter steering wheel with adjustable steering column
  • Simple components
  • Noise isolation material
  • Yale special display with 3.5” LCD

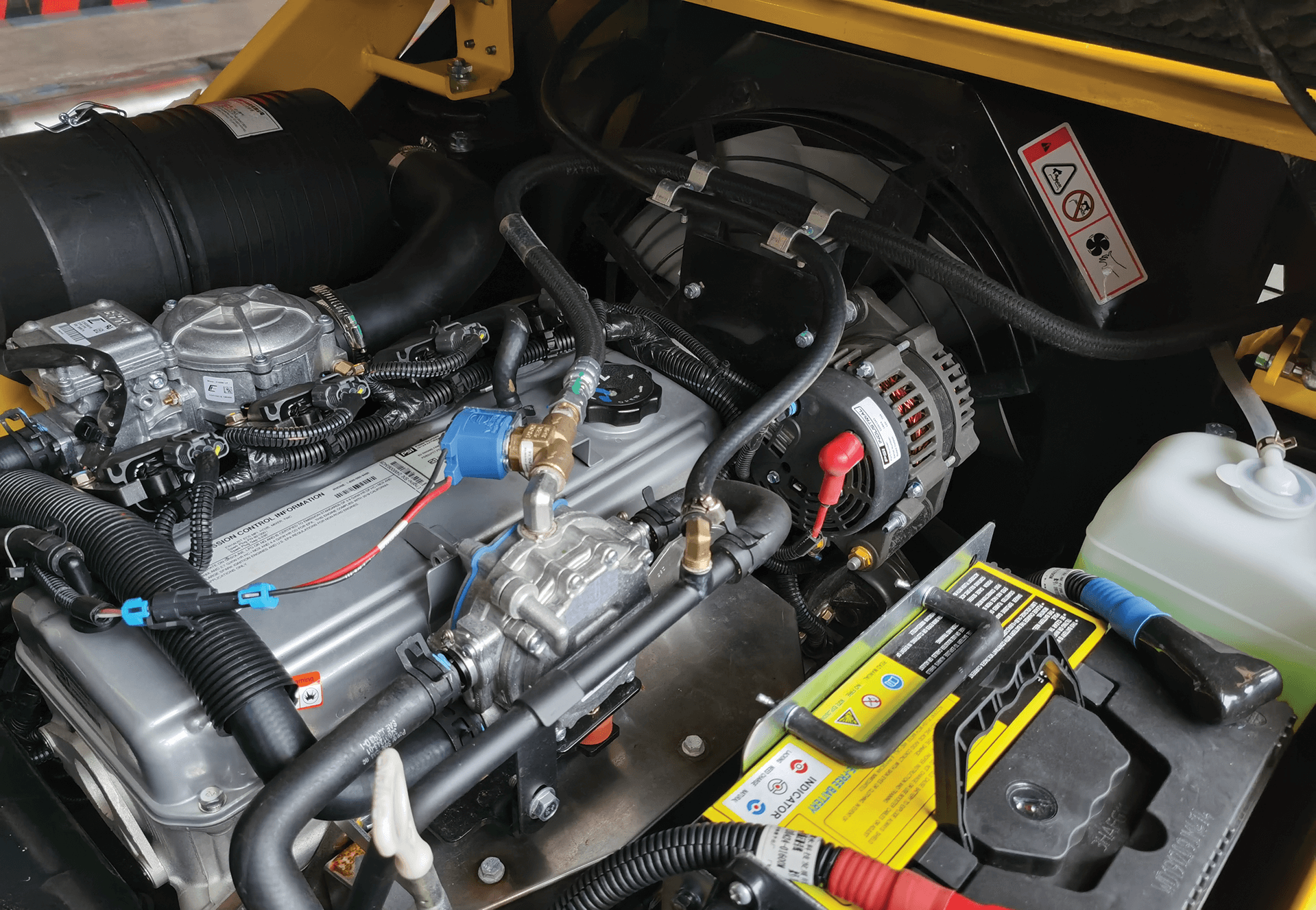

  • Large access area for service and repairs
  • Operator presence system
  • High strength overhead guard
  • Low center of gravity
  • Triplex plate OHG allows easy top canopy replacement
  • Exchangeable components across models
  • Wide view mast
  • Hand lever park brake
  • Dual suspension drivetrain system
  • Computer-based diagnostics not required
  • Hand parking brake lever with button greatly reduces fatigue in operation

Models
  • Model Model Designation Load Capacity (lbs.) Engine Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
    GLP040UX Internal Combustion Trucks 4000 PSI 2.4L LPG 11.1 103
    GLP050UX Internal Combustion Trucks 5000 PSI 2.4L LPG 11.1 103
    GLP060UX Internal Combustion Trucks 6000 PSI 2.4L LPG 11.8 85
    GLP070UX Internal Combustion Trucks 7000 PSI 2.4L LPG 11.8 71
  • Capacity: 4,000 - 7,000 lbs
  • Max Height: 216
  • Max Weight: 7000 lbs
  • Series Title: GLP040-070UX

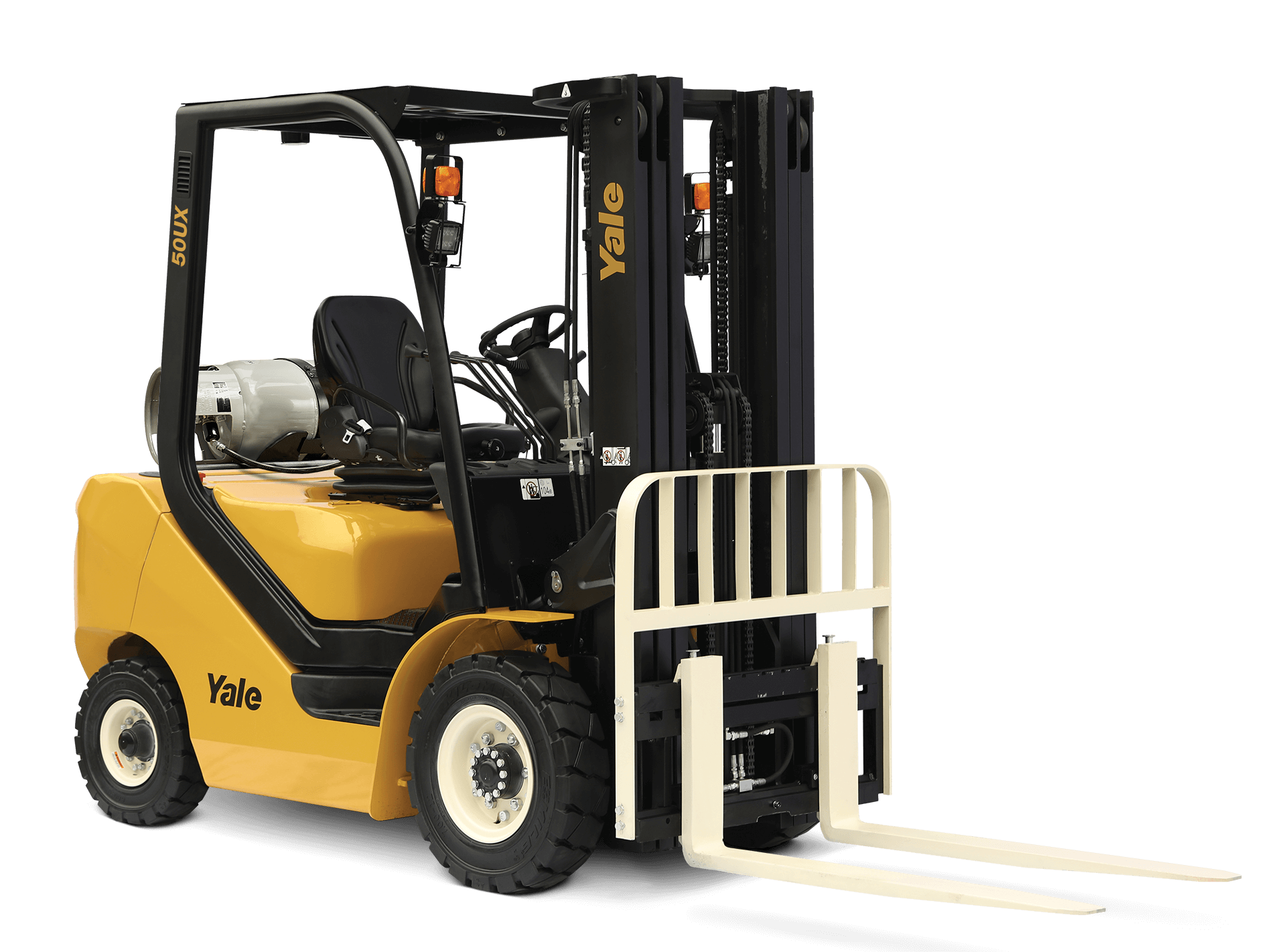

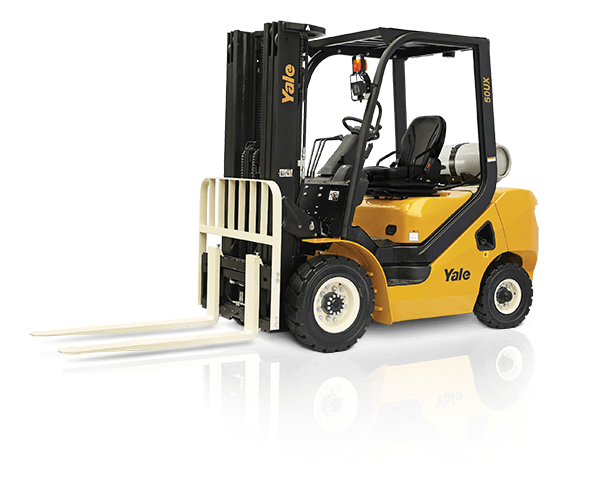

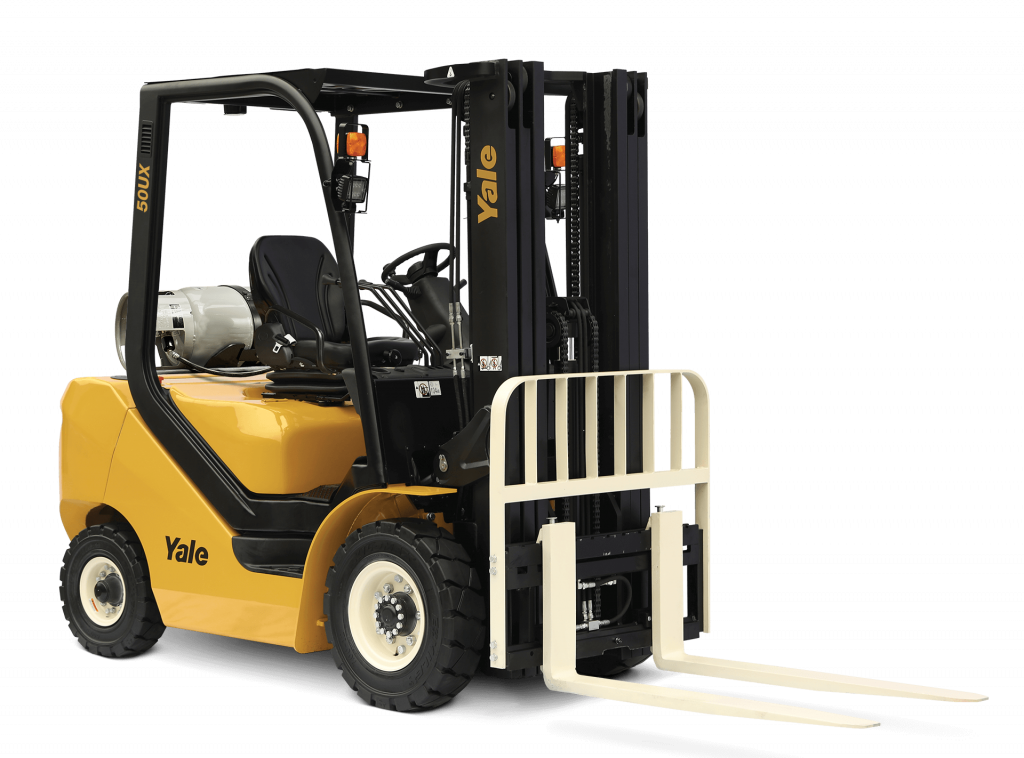

  • Type: UX Pneumatic Tire Lift Truck
  • Weight: lbs

Documentation

Download at http://www.riekesequipment.com/new-equipment/forklifts/internal-combustion/GLP040-070UX

GLP040-070UX Brochure
