Features
  • Yale® Flex Performance Technology™ offers flexibility to maximize fuel economy or productivity to match application needs.
  • Generous use of sealed connectors and hydraulic fittings lessen the chance of leaks, while canted load rollers provide mast stability and eliminate the need for periodic shimming.
  • Integral side shifting fork positioner (optional) enables faster fork width adjustment.
  • PSI engine available in LPG or dual fuel is designed for industrial applications and maximum reliability, while minimizing periodic maintenance requirements.
  • Rear drive handle with horn button (optional) provides excellent hand hold for reverse driving and ready access to auxiliary horn button.
  • Robust powertrain components are designed for long life.
  • Spirited acceleration, travel speeds and mast lift/lowering help enhance productivity.
  • Foot directional control pedal (optional) permits hands free directional control.
  • Maintenance free Continuous Stability System (CSS™) allows more steer axle articulation over uneven surfaces while minimizing truck lean to enhance lateral stability.
  • Hi-Vis™2 mast and bar-on-edge overhead guard design offer enhanced visibility.
  • Adjustable armrest that accompanies Accutouch e-hydraulic configuration offers mini-levers for low-effort fingertip control of horn and hydraulic functions.

Models
Model Model Designation Load Capacity (lbs.) Engine Transmission Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
GP040MX Internal Combustion Trucks 4000 PSI 2.4L LPG Electronic Powershift 1 Speed 11.6 128
GP050MX Internal Combustion Trucks 5000 PSI 2.4L LPG Electronic Powershift 1 Speed 11.6 128
GP060MX Internal Combustion Trucks 6000 PSI 2.4L LPG Electronic Powershift 1 Speed 12.3 112
  • Capacity: 4,000 - 6,000 lbs
  • Max Height: 218
  • Max Weight: 6000 lbs
  • Series Title: GP040-060MX

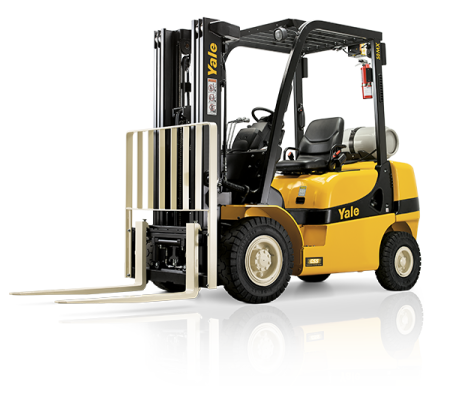

  • Type: MX Pneumatic Tire Lift Truck
  • Weight: lbs

Documentation

Download at http://www.riekesequipment.com/new-equipment/forklifts/internal-combustion/GP040-060MX

GP040-060MX Spec Sheet
GP040-060MX Brochure
