Features
  • For applications requiring the use of attachments; Yale® attachment ready models are available with a factory modified front end, which allow for seamless truck and Bolzoni Auramo attachment interface.
  •  Advanced Techtronix transmissions are built for durability and patented controllability, while extending tire and brake life up to 50%
  • On-demand cooling system matches cooling fan speed to engine temperature, maintaining optimum engine and transmission temperatures, virtually eliminating the possibility of overheating
  •  Powertrain combinations include PSI 4.3L V6 LPG, Kubota 3.8L LPG / Dual Fuel / DOC diesel, and turbo diesel engines
  •  Ergonomic operator compartment includes optimized step height with non-slip tread, soft touch contoured hand grip and infinitely adjustable steer column
  • Combi-cooler contains an individual oil cooler to maximize transmission heat dissipation
  • On-demand hydraulic system featuring Accutouch mini-lever controls pumps oil only when required, reducing fuel consumption
  • Full venting package draws air into the engine compartment from higher on the truck to enhance airflow and avoid radiator clogging
  • Fully sealed wet disc brakes virtually eliminate brake maintenance and often last the life of the truck. Premium force-cooled wet disc brakes are standard on GP100-120VX models and optional on GP080-090VX models.
  •  ALL engines feature Yale® Flex Performance Technology™, selectable performance modes that provide the flexibility to maximize fuel economy or productivity to match application requirements

Models
  • Model Model Designation Load Capacity (lbs.) Engine Transmission Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
    GP080VX Internal Combustion Trucks 8000 Kubota 3.8L LPG, Kubota Turbocharged 3.8L Diesel, Kubota 3.8L DOC Diesel, Kubota 3.8L Dual Fuel, PSI 4.3L LPG Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed 16 125
    GP090VX Internal Combustion Trucks 9000 Kubota 3.8L LPG, Kubota Turbocharged 3.8L Diesel, Kubota 3.8L DOC Diesel, Kubota 3.8L Dual Fuel, PSI 4.3L LPG Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed 16 125
    GP100VX Internal Combustion Trucks 10000 Kubota 3.8L LPG, Kubota Turbocharged 3.8L Diesel, Kubota 3.8L DOC Diesel, Kubota 3.8L Dual Fuel, PSI 4.3L LPG Electronically Controlled Powershift 2 Speed, Techtronix100X Electronic 2 Speed 14.8 102
    GP110VX Internal Combustion Trucks 11000 Kubota 3.8L LPG, Kubota Turbocharged 3.8L Diesel, Kubota 3.8L DOC Diesel, Kubota 3.8L Dual Fuel, PSI 4.3L LPG Electronically Controlled Powershift 2 Speed, Techtronix100X Electronic 2 Speed 14.7 102
    GP120VX Internal Combustion Trucks 12000 Kubota 3.8L LPG, Kubota Turbocharged 3.8L Diesel, Kubota 3.8L DOC Diesel, Kubota 3.8L Dual Fuel, PSI 4.3L LPG Electronically Controlled Powershift 2 Speed, Techtronix100X Electronic 2 Speed 14.7 102
  • Capacity: 8,000 – 12,000 lbs
  • Max Height: 310
  • Max Weight: 12000 lbs

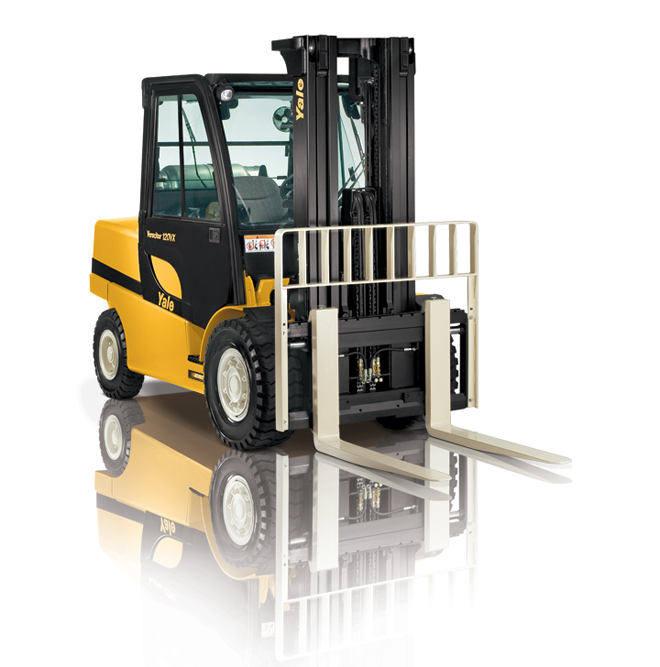

  • Series Title: GP080-120VX
  • Type: Veracitor® Pneumatic Tire Lift Truck
  • Weight: lbs

Documentation

Download at http://www.riekesequipment.com/new-equipment/forklifts/internal-combustion/GP080-120VX

Rotator attachment flyer
Yale® bale clamp attachment
GP080-120VX-Brochure-Tech-Guide
