V30-35ZMU
Unrivaled Versatility to Fit Your Application

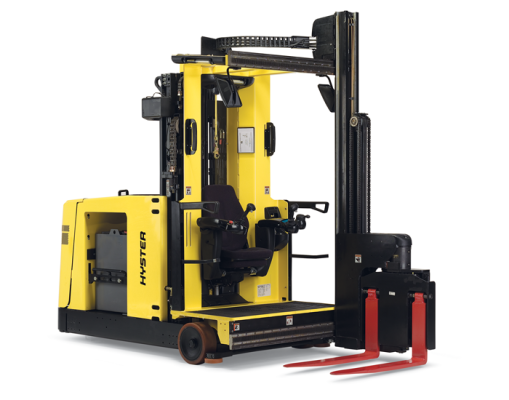

The Hyster VNA lift truck is designed for indoor use and is ideally suited for applications such as large distribution centers and high density stacking and storing.
The Hyster V30-35ZMU series of lift trucks offers a host of options that guarantee you will have exactly the truck your application requires. Options such as five chassis choices, three operator compartment configurations, and either 48 or 72 volt systems are all available.
These options along with our advanced ergonomic design allow the operator to maintain maximum productivity throughout an entire shift. And our superior energy efficiency makes the V30-35ZMU very narrow aisle turret trucks cost less to operate and increase your productivity.
Features
- Hyster Company’s exclusive HySense Advance feature monitors lift height and load weight to provide maximum truck performance
- AC traction, hoist and steering motors have no brushes to check or replace resulting in extended service intervals.
- Lift/lower speedsÂ
- Key components are reached via a one-piece steel motor compartment cover that opens 180º, making routine service quick and easy.
- Travel speed
- Operators can program truck performance for their preferred working style to boost their productivity. Adjustable truck performance parameters include: Acceleration Travel speed Lift/lower speedsÂ
- With three-way adjustment of the forward-mounted console, operators can easily reach controls, no matter what their size or position in the compartment.
- An optional pre-height selector automatically reduces lift speed when the turret head approaches a pre-defined height
- Acceleration
Specifications
- Max Height: 668
- Type: VERY NARROW AISLE FORKLIFT
- Series Title: V30-35ZMU
- Capacity: 3,000 - 3,500 lbs
- Max Weight: 3500 lbs
| Model | Load Capacity (lbs) | Battery | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) | Lower Lift Speed (ft/min) |
|---|---|---|---|---|---|
| V30ZMU | 3000 | Â 48 | 6.5 | 83 | 98 |
| V35ZMU | 3500 | Â 72 | 6.5 | 79 | 118 |
