• A lower cost of operation is achieved by advanced control features that help to reduce energy consumption, such as adjustable performance settings, which allow the truck to be tailored to the application requirements
  • Easily accessible components and onboard diagnostics help to make maintenance quick and simple, minimizing downtime and costs associated with routine maintenance. The AC traction motor with built in thermal protection is fully enclosed for protection against damage and debris, also helping to minimize service downtime

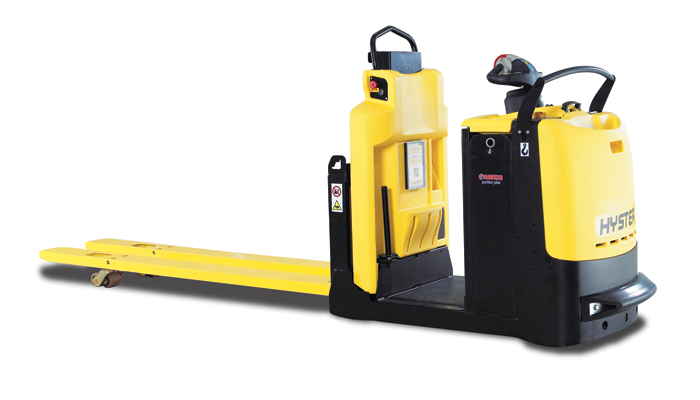

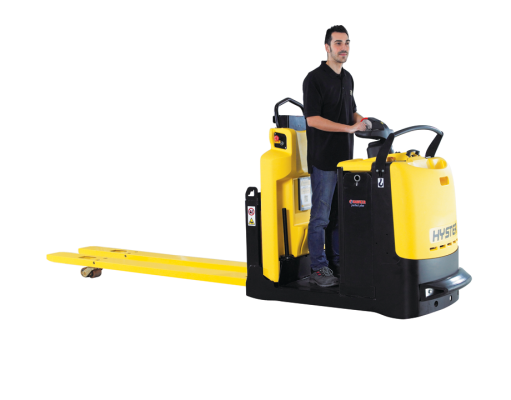

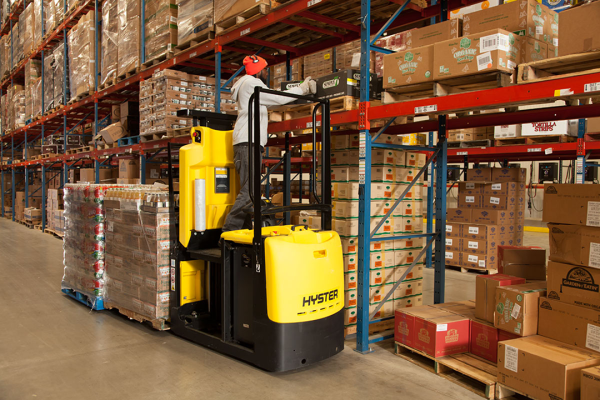

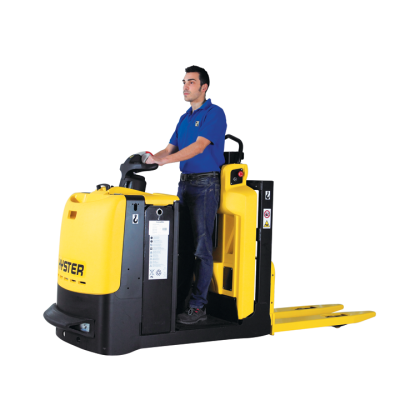

  • The tough Hyster multi-level order picker LO2.5 features a 2.6kW AC motor, that delivers high  acceleration, braking and travel speed for intense picking applications
  • The LO2.5 models can be equipped with a coasting function (previously known as creep control), allowing the operator to move with the truck to the next pick location without having to climb on board
  • Component life is extended and operational costs for order picking reduced thanks to the regenerative braking, which reduces use of the service brake and dissipates the heat of the traction motor
  • For tough operating environments a welded steel box construction protects the order picker from impact collision and helps ensure long term reliability and durability. The robust pull road design on the load wheel axle also helps to ensure long term reliability

  • Model Load Capacity (lbs) Lift Height Platform Height Battery
    LO2.5 5500 4 38 24V / 620Ah
  • Capacity: 5,500 lbs
  • Max Height: 4
  • Max Weight: 5511 lbs
  • Series Title: LO2.5
  • Type: Multi-Level Order Picker
  • Weight: lbs


Download at http://www.riekesequipment.com/new-equipment/forklifts/pallet-movers/LO2.5

LO2.5 Technical Guide
LO2.5 Brochure
