Features

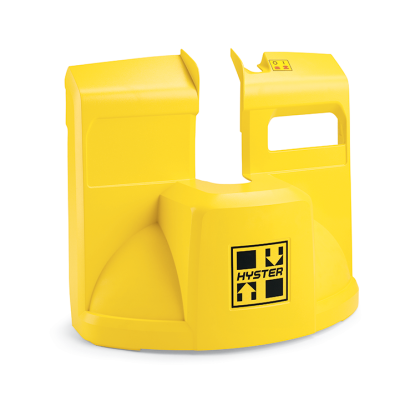

  • The cover of the W45ZHD is comprised of a highly durable, engineered thermoplastic elastomer. It is flexible, resistant to chipping, and gives full protection of components, unlike metal covers of some competitors.
  • Heavy duty torsion bar and casted yokes helps stability and equalized loading.
  • The shortened, mid-mounted handle moves the operator closer to the truck, maximizing both visibility and maneuverability. Our W45ZHD truck has the largest run zone in the industry.
  • The optional Direct Store Delivery (DSD) package with lithium-ion battery and exclusive handle design provide optimum control and maneuverability in and out of trailers and in tight store aisles.
  • Intelligent Lift™ enables the operator to start transporting the pallet before the unit is at full lift.
  • To further ensure that every load remains stable, the Hyster® W45ZHD truck features optional Intelligent Slow Down™ technology. This exclusive feature recognizes when the truck is turning and intelligently reduces the truck’s speed, assisting the operator through the corner.
  • A sealed, maintenance free, 56 Ah lithium-ion battery pack is available as an option. The Lithium-Ion Advanced Performance Power System is the first UL recognized lithium-ion pack in the walkie industry. Truck performance is enhanced in congested areas and tight spaces, due to the shorter, more compact 6” battery compartment. No equalization charge is required, and opportunity charging is performed with no negative effect. With a lifespan of 5+ years, the lithium ion pack lasts up to 5 times longer than traditional battery solutions, and it comes with a 60 month/10,000 hour warranty.

Models
  • Model Load Capacity (lbs) Battery Maximum Travel Speed (mph) Fork Length
    W45ZHD 4500 24 3.7 36,42,48
  • Max Height:
  • Max Weight: 4500 lbs
  • Series Title: W45ZHD
  • Type: Walkie Pallet Truck
  • Weight: lbs

Documentation

Download at http://www.riekesequipment.com/new-equipment/forklifts/pallet-movers/W45ZHD

W45ZHD DSD Option Flyer
W45ZHD Tech Guide
W45ZHD DSD Benefits Flyer
W45ZHD Brochure
