Features

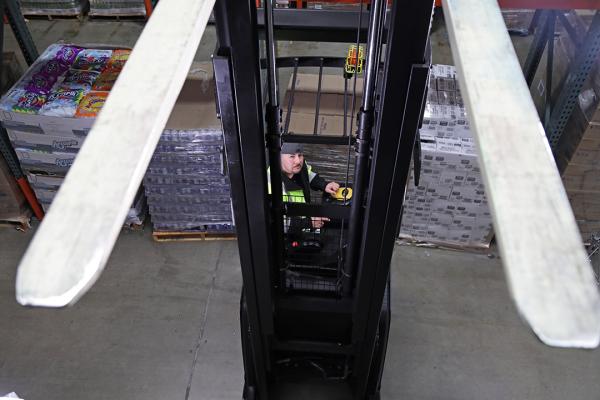

  • A redesigned mast combined with innovative design features such as frame profile, notched load backrest and lowered reach mechanism creates best-in-class forward visibility
  • Disassemble the pantograph in 4 steps without removing the carriage, saving up to 45 minutes per truck compared to leading competitors*

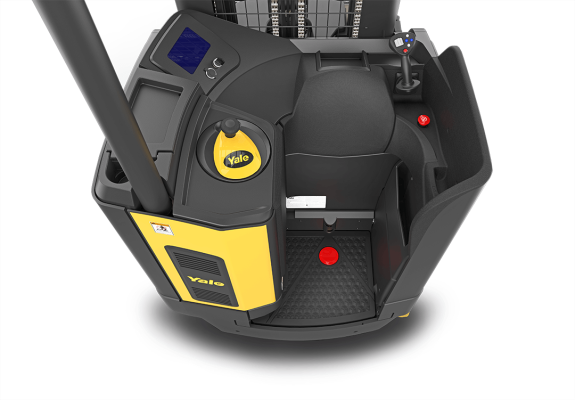

  • Two operator compartment options (side stance and forward stance)
  • Access the motor and control compartments without the need for tools
  • Save up to $2500** per truck, per year in scheduled maintenance costs compared to the competition
  • Patented, industry exclusive operator sensing system features a pedal-free design allowing operators freedom to adjust stance
  • Get more out of a single battery charge by using up to 20% less energy*
  • A raised overhead guard increases operator head clearance and helps improve line of sight at the 2nd and 3rd pick positions

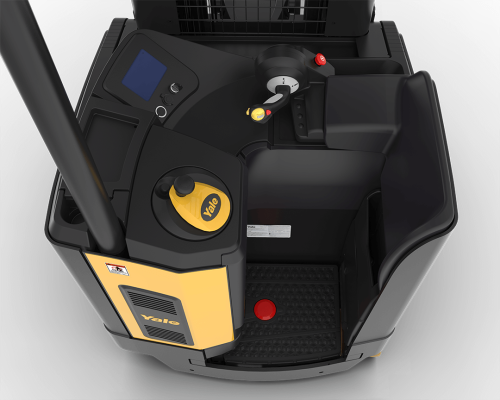

  • Unlike competitors, an adjustable steer tiller, armrest and backrest are standard features on the side stance model
  • Help increase productivity by as much as 7% per truck, per shift by moving at least one pallet more per hour than the leading competitor*
  • Introducing a new multifunction, touch screen display
  • Up to 1,000lb more capacity to height than previous model
  • Shave seconds with industry-leading lift/lower cycle times
  • Industry exclusive, forward stance with aft travel control handle and automotive steering provides natural steering familiarity in both directions
  • Optional wireless camera with built in LED lights
  • Optional, industry exclusive Yale® Smart Ride suspended floor system helps reduce up to 60% of shock and vibration compared to conventional mat
  • Set and adjust mast rollers within minutes without shims, gauges or disassembly
  • Optional fork laser level line

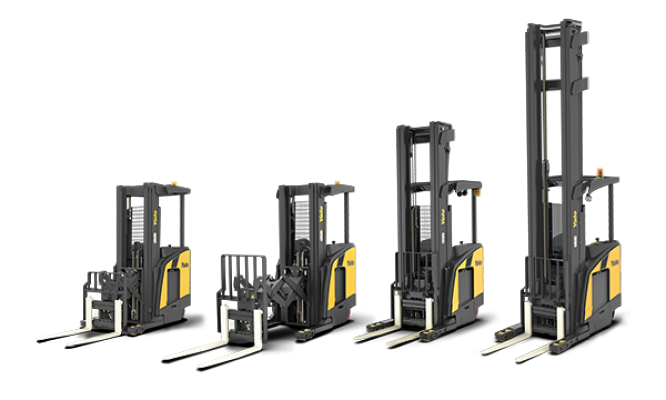

Models
  • Model Load Capacity (lbs.) Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min) Lower Lift Speed (ft/min)
    NDR030DC 3000 24/36 6.5 66/77 85
    NR035DC 3500 24/36 6.5 66/77 85
    NR040DC 4000 24/36 6.5 66/77 85
    NDR030EC 3000 36 7.5 150 110/140†
    NDR035EC 3500 36 8 175 140/160‡
    NR035EC 3500 36 7.5 130 110
    NR040EC 4000 36 7.5 150 110/140†
    NR045EC 4500 36 8 175 140/160‡
  • Capacity: 3,000 - 4,500 lbs
  • Max Height: 422
  • Max Weight: 4000 lbs
  • Series Title: NR/NDR-DC/EC

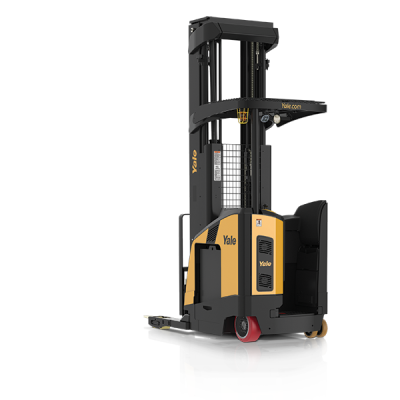

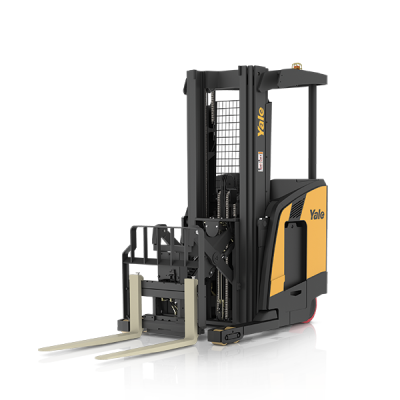

  • Type: Yale Narrow Aisle Reach Trucks
  • Weight: lbs

Documentation

Download at http://www.riekesequipment.com/new-equipment/forklifts/reach-trucks/NR/NDR-DC/EC

NR-NDR-EC-DC Reach Trucks Brochure
NR-NDR030-045EC Specification Sheet
NR-NDR030-040DC Specification Sheet
