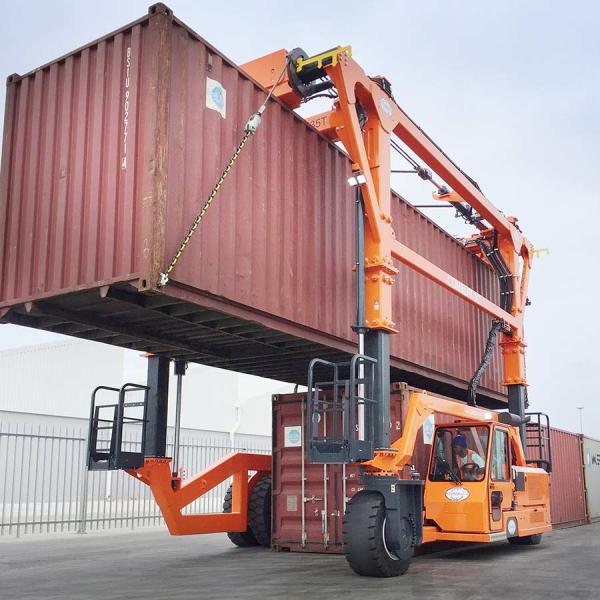

Combi-SC3 Telescopic Chain

Low volume, standard chain, straddle carriers, primarily for the loading and unloading from trailer to ground of containers and various loads. The telescopic function gives the ability to double stack containers. This highly customizable machine is able to have 360-degree vision when a load is lifted, and is capable of handling weight up to 77,000 lbs.

Features

  • Soft Solid puncture proof tires
  • Travels in/out of warehouse with ease
  • 360 degree vision when load is lifted
  • Side Shift Front & Rear
  • No brake maintenance
  • Low ground pressure when fully loaded
  • Same Unit can lift 20’, 30’, 40’, 45’ Containers
  • Reduced fuel/energy consumption
  • Ergonomically designed /driver friendly cab
  • Highly customisable
  • Rough terrain & ramp friendly, works on compacted stone, bitumen and light concrete
  • Easy to service
  • Exceptional 3-wheel maneuverability
Specifications

  • Capacity: 35000 kg
  • Lift Stroke: 2200 mm
  • Loading area height: 4360 mm - 6160 mm
  • Loading area width: 3000 mm
  • Overall Height: 4925 mm - 6725 mm
  • Overall Width: 4920 mm
