Features
  • High Visibility Mast Allows Optimum Safety and Control
  • Ergonomic Design for Exceptional Operator Comfort and Safety
  • Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
  • LandActive Control Provides Enhanced Traction Control Based on Steering Angle
  • High Efficiency Curtis AC Controllers Provide Trouble Free Operation
  • DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
  • 3,000 lb. (1363kg) Capacity at 24
  • AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
  • 3-Wheel Design, Single Front Wheel Drive Provides Excellent Maneuverability and Traction
  • Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
  • Integral Sideshifter Makes Placing and Picking Loads Effortless
  • Cold Storage Conditioned to -22F (-30C)
  • 48 Volt Electrical System and Large Capacity Battery Compartment
  • Cab Floor Height: 31 in / 787 mm
  • Capacity: 3000 lbs / 1363 kg
  • Chassis Width: 44.8 in / 1138 mm
  • Drive Motor Rating: 5.1 kW
  • Front Articulation: 200 degrees
  • Gradeability (loaded): 5%
  • Gradeability (unloaded): 8%
  • Hydraulic Control Type (Curtis): AC
  • Hydraulic Motor Rating: 12 kW
  • Lift Speed (loaded): 90 fpm / 27.4 mpm
  • Lift Speed (unloaded): 100 fpm / 33.5 mpm
  • Load Center: 24 in / 600 mm
  • Lowering Speed (loaded): 100 fpm / 30.5 mpm
  • Lowering Speed (unloaded): 90 fpm / 27.4 mpm
  • Mast Tilt: 1 / 2 degrees
  • Overall Length to Face of Forks: 109.9 in / 2791 mm
  • Overhead Guard Height: 87 in / 2209 mm
  • Power Source: 48 Volt Battery
  • Seat Height: 51 in / 1295 mm
  • Traction Control Type (Curtis): AC
  • Travel Speed (loaded): 5.5 mph / 8.9 kph
  • Travel Speed (unloaded): 6 mph / 9.7 kph
  • Underclearance: 3 in / 76 mm
  • Weight with Battery: 12800 lbs / 5818 kg
  • Wheel Size (front): 18x7 in / 457x178 mm
  • Wheel Size (rear): 18x7 in / 457 x 178 mm
  • Wheelbase: 69.6 in / 1768 mm

Documentation

Download at http://www.riekesequipment.com/new-equipment/specialty-forklifts/articulated--swing-mast/B3/30AC

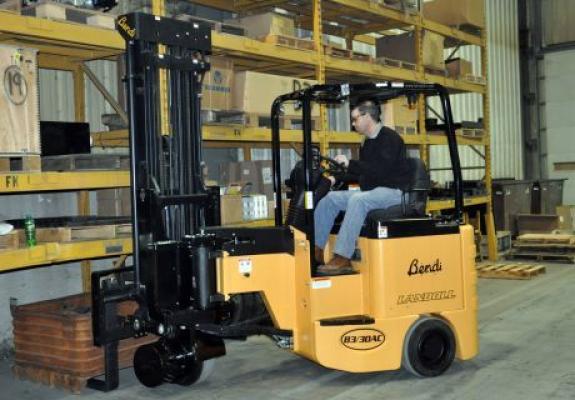

Bendi B3/30AC
Bendi B3/30AC Spec Sheet
